SKU: SIKB8F-SKF

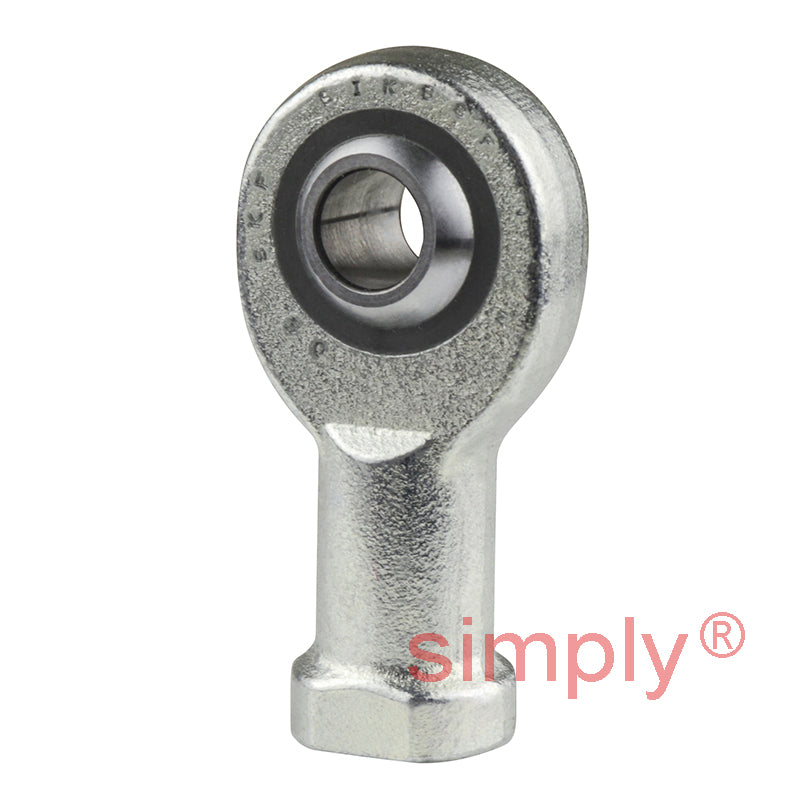

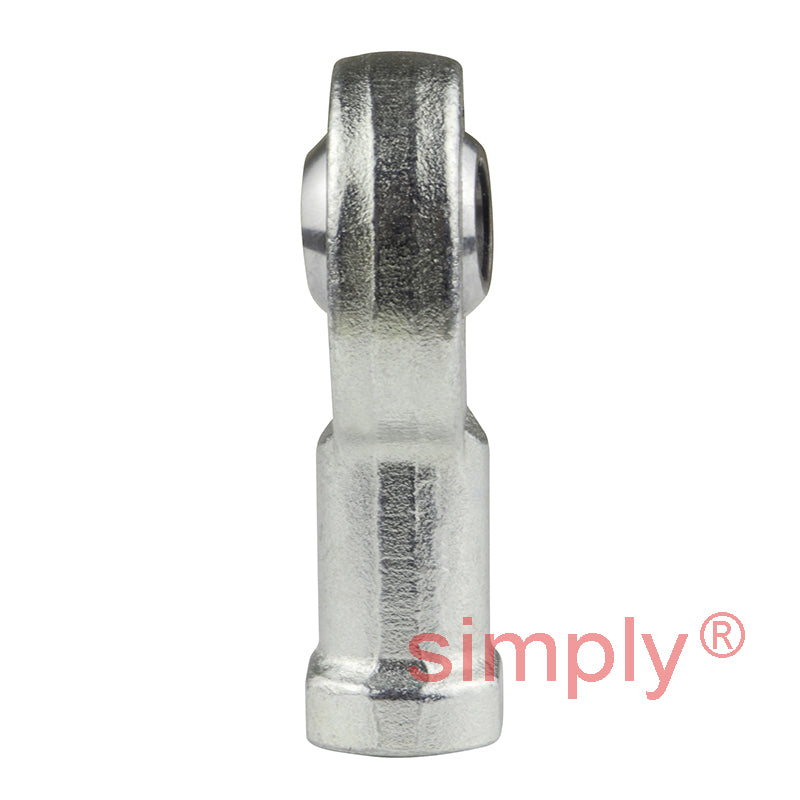

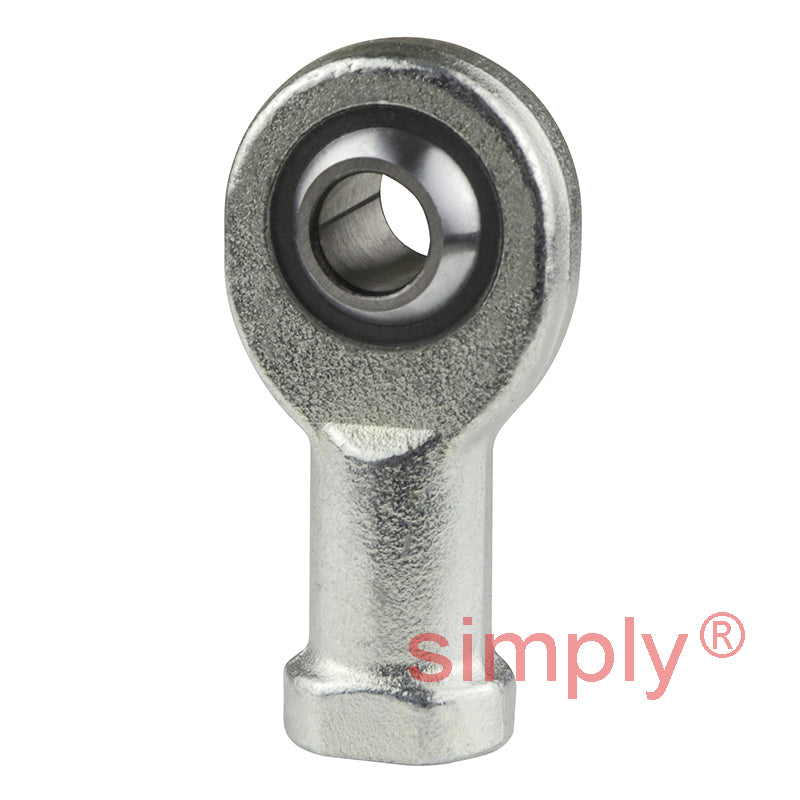

SKF SIKB8F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M8 Thread
- Regular price
- $40.12 ex VAT
- Sale price
- $40.12
- Regular price
-
In stock
Quantity Price Breaks
10
$35.71
19
$33.70
29
$33.30
39
$32.90
49
$32.50
74
$32.10
99
$30.09
199
$29.69
249
$29.29
499
$28.89
999
$28.08
SKU:
SIKB8F-SKF
SKF SIKB8F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M8 Thread
- Regular price
- $40.12 ex VAT
- Sale price
- $40.12
- Regular price
-
Description
|

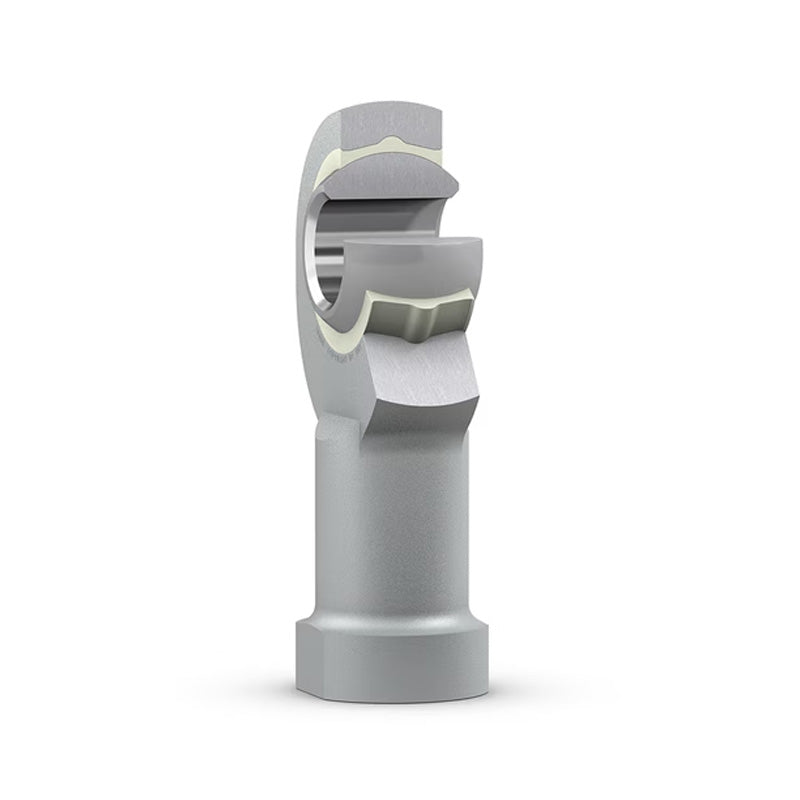

SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
