SKU: SIKB20F-SKF

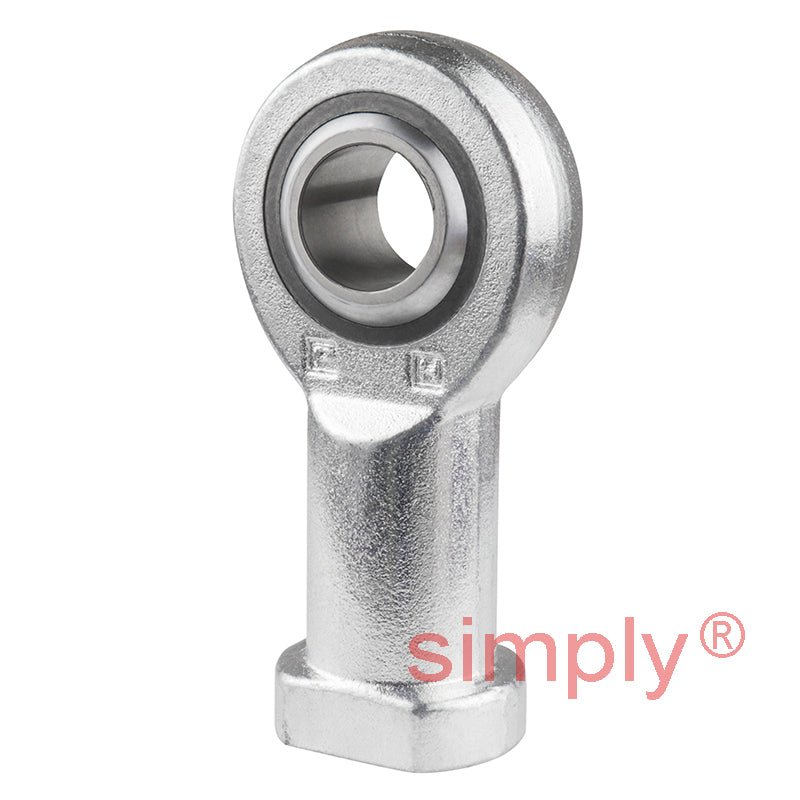

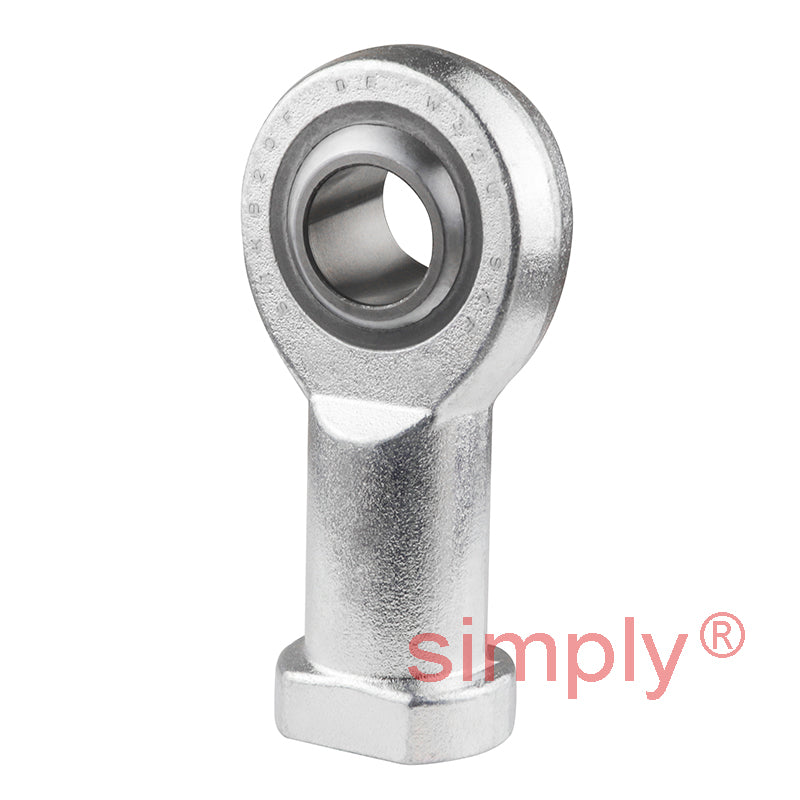

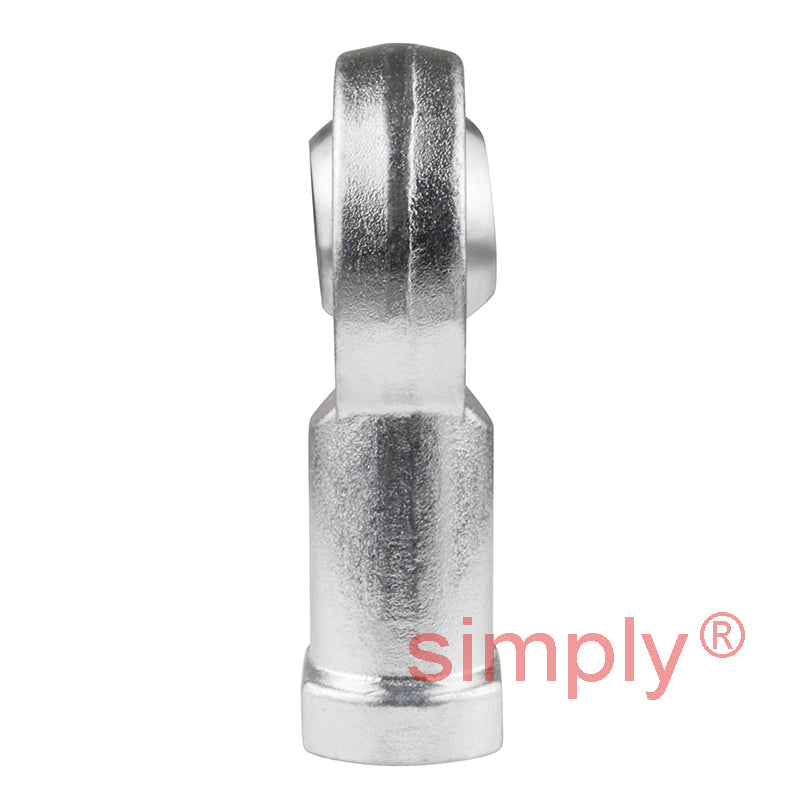

SKF SIKB20F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M20x1.5 Thread
- Regular price
- $129.33 ex VAT
- Sale price
- $129.33
- Regular price
-
In stock
Quantity Price Breaks
10+
$115.10
19+
$108.64
29+
$107.34
39+
$106.05
49+
$104.76
74+
$103.46
99+
$97.00
199+
$95.70
249+
$94.41
499+
$93.12
999+
$90.53
SKU:
SIKB20F-SKF
SKF SIKB20F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M20x1.5 Thread
- Regular price
- $129.33 ex VAT
- Sale price
- $129.33
- Regular price
-
Description
|

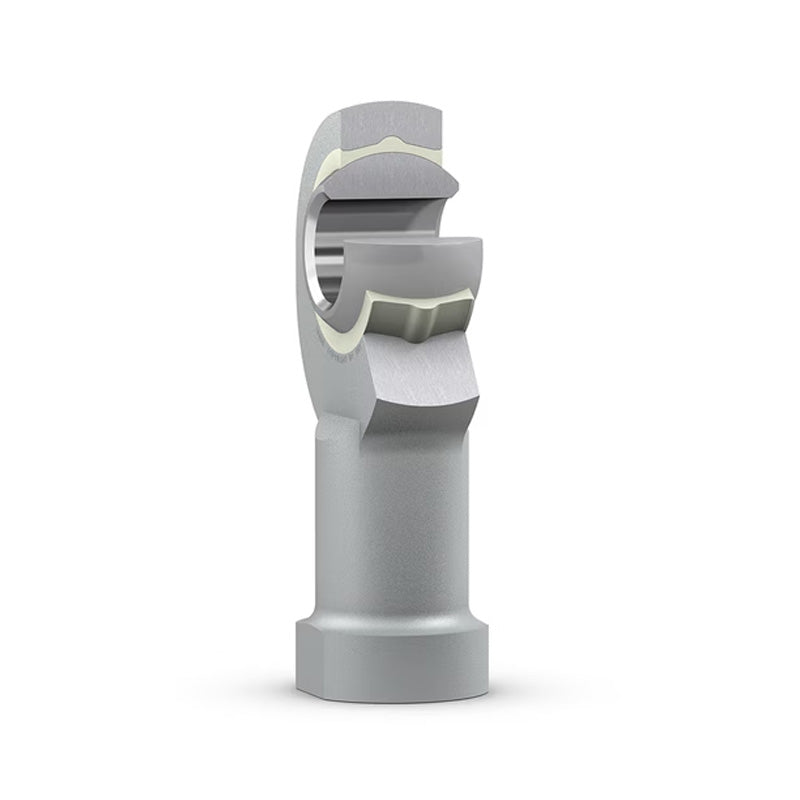

SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
