SKU: SIKB16F-SKF

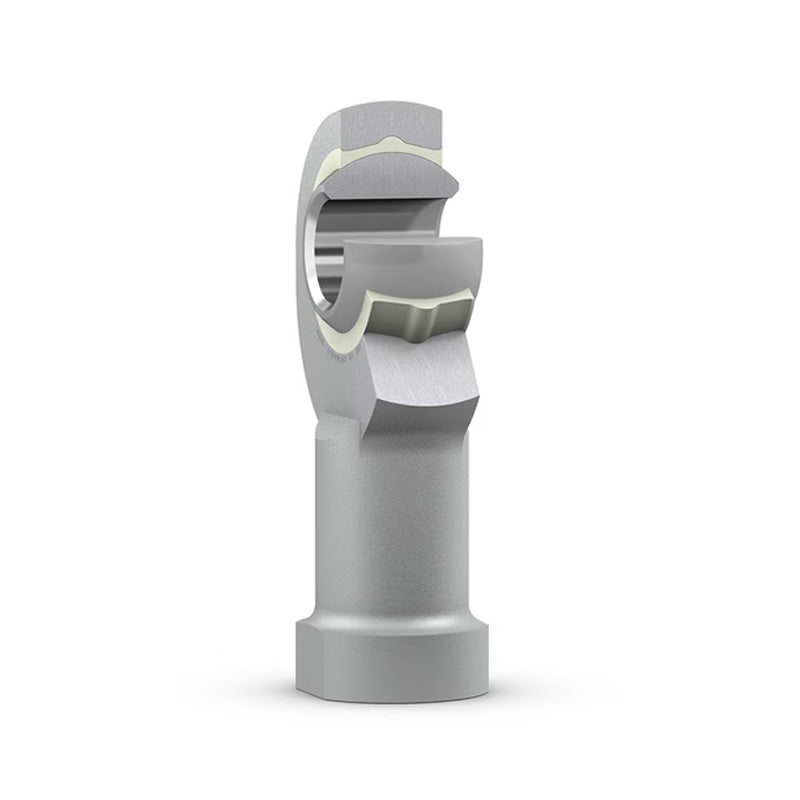

SKF SIKB16F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M16 Thread
- Regular price
- $99.44 ex VAT
- Sale price
- $99.44
- Regular price
-
In stock
Quantity Price Breaks
10+
$88.50
19+
$83.53
29+
$82.54
39+
$81.54
49+
$80.55
74+
$79.55
99+
$74.58
199+
$73.59
249+
$72.59
499+
$71.60
999+
$69.61
SKU:
SIKB16F-SKF
SKF SIKB16F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M16 Thread
- Regular price
- $99.44 ex VAT
- Sale price
- $99.44
- Regular price
-
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
