SKU: SIKB12F/VZ019-SKF

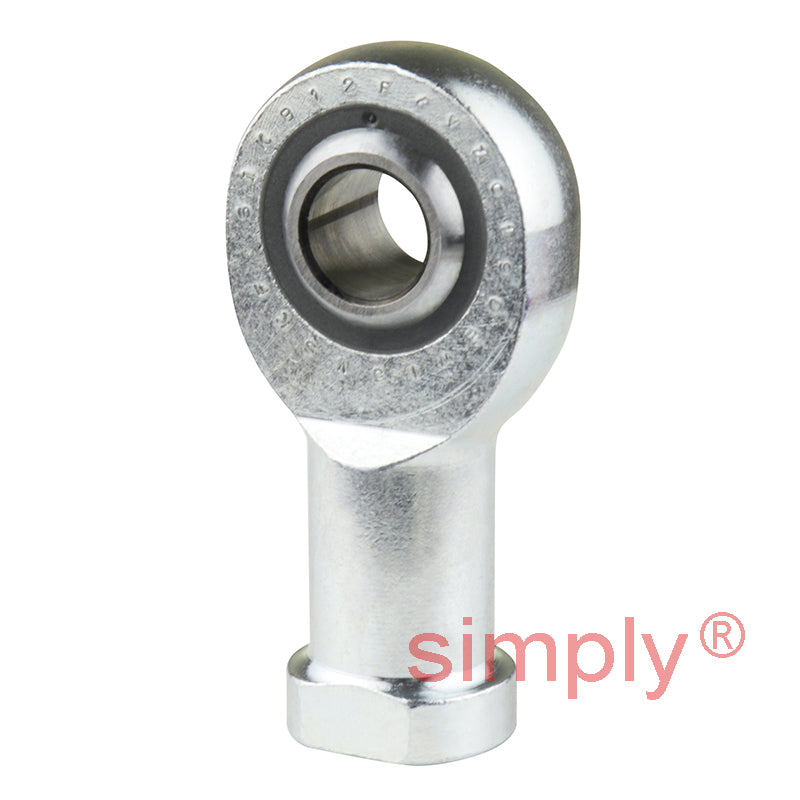

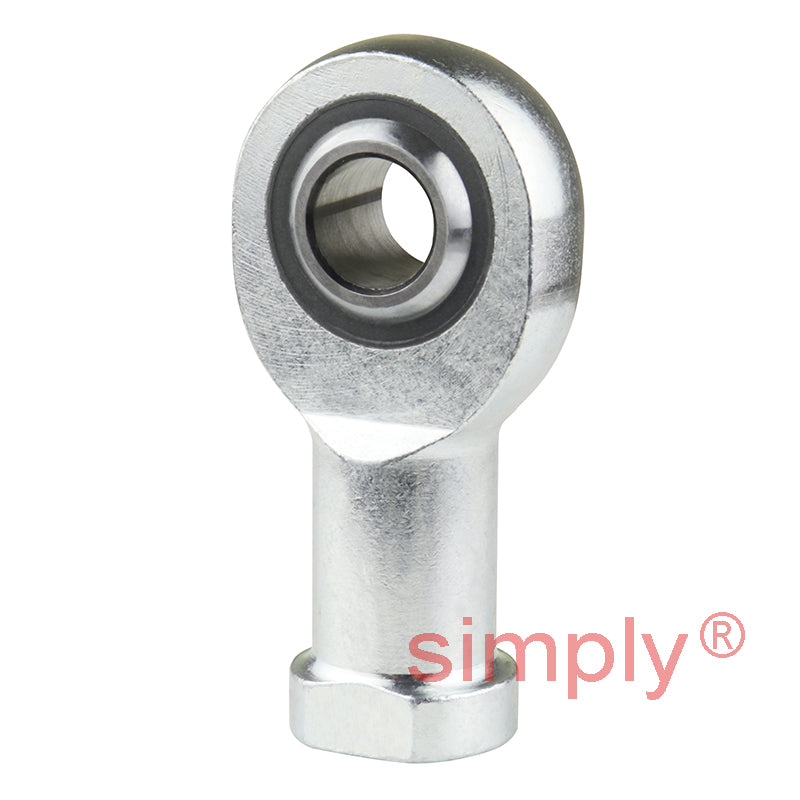

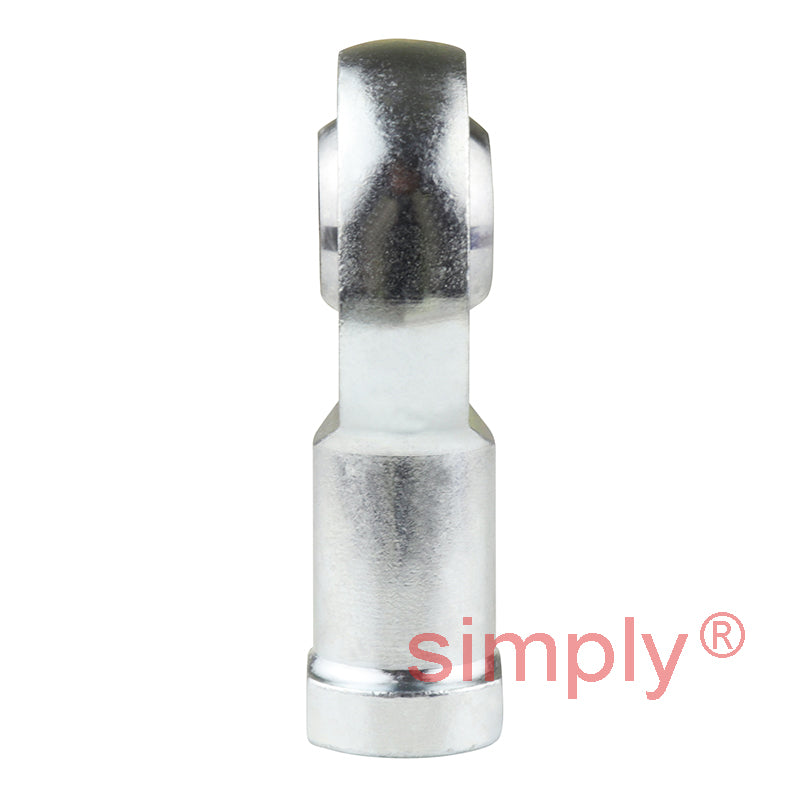

SKF SIKB12FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12x1.25 Thread
- Regular price
- $56.41 ex VAT
- Sale price
- $56.41
- Regular price
-
In stock
Quantity Price Breaks
10+
$50.20
19+
$47.38
29+
$46.82
39+
$46.26
49+
$45.69
74+
$45.13
99+
$42.31
199+
$41.74
249+
$41.18
499+
$40.62
999+
$39.49
SKU:
SIKB12F/VZ019-SKF
SKF SIKB12FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12x1.25 Thread
- Regular price
- $56.41 ex VAT
- Sale price
- $56.41
- Regular price
-
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
