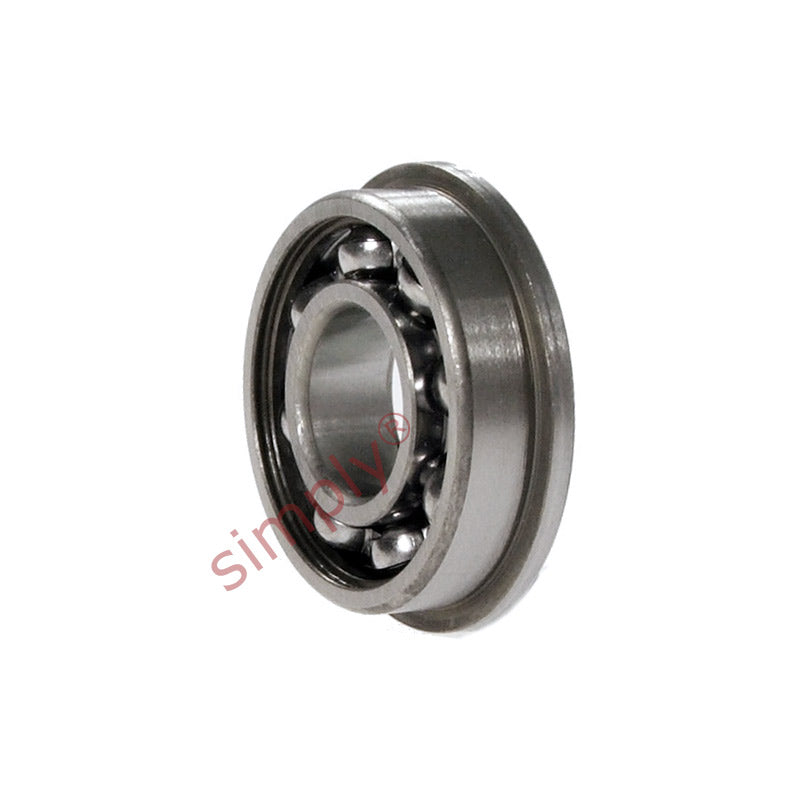

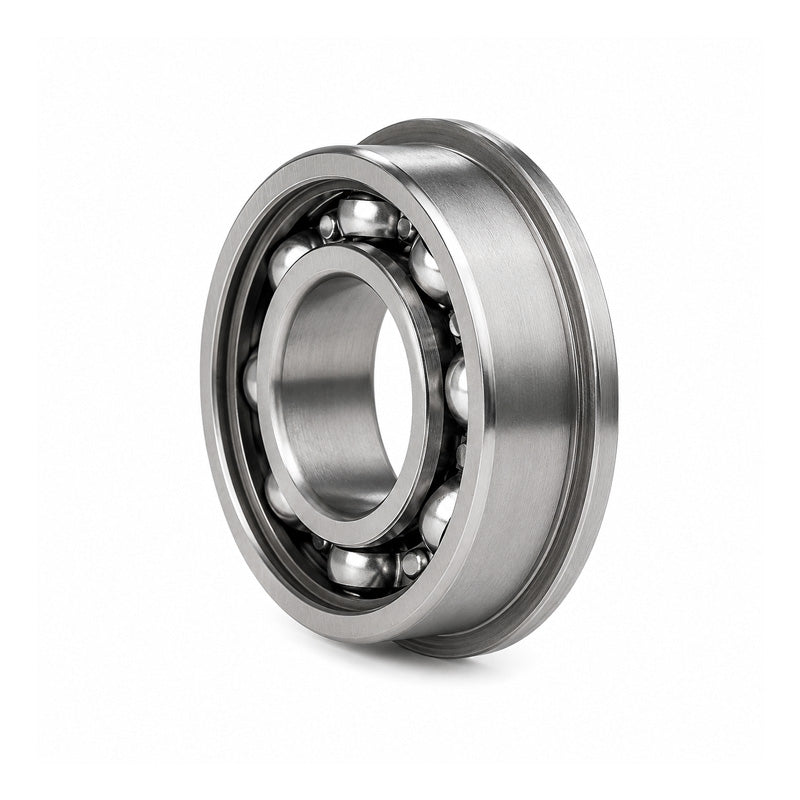

SFR166 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 3/16x3/8x1/8 inch

SKU: SFR.166

SFR166 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 3/16x3/8x1/8 inch

$10.37 ex VAT
$10.37
ex VAT
In stock

Quantity Price Breaks

5 $9.23
9 $8.71
19 $8.61
24 $8.50
49 $8.40
74 $8.30
99 $7.78
199 $7.67
249 $7.57
499 $7.47
999 $7.26
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SFR166 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 3/16x3/8x1/8 inch
SKU: SFR.166

SFR166 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 3/16x3/8x1/8 inch

$10.37 ex VAT
$10.37
ex VAT

Description

Stainless Steel Flanged Deep Groove Ball Bearings: Manufactured in stainless steel to the same principal sizes as standard chrome steel bearings. They have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports
Benefits: Cost effective replacement bearing, Flanged design, Higher corrosion resistance
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets.

Technical

Inside diameter d = 3/16 inch
Outside diameter D = 3/8 inch
Bearing width B = 1/8 inch
Flange diameter P = 0.422 inch
Flange width w = 0.023 inch
