SKU: SFH-80-B

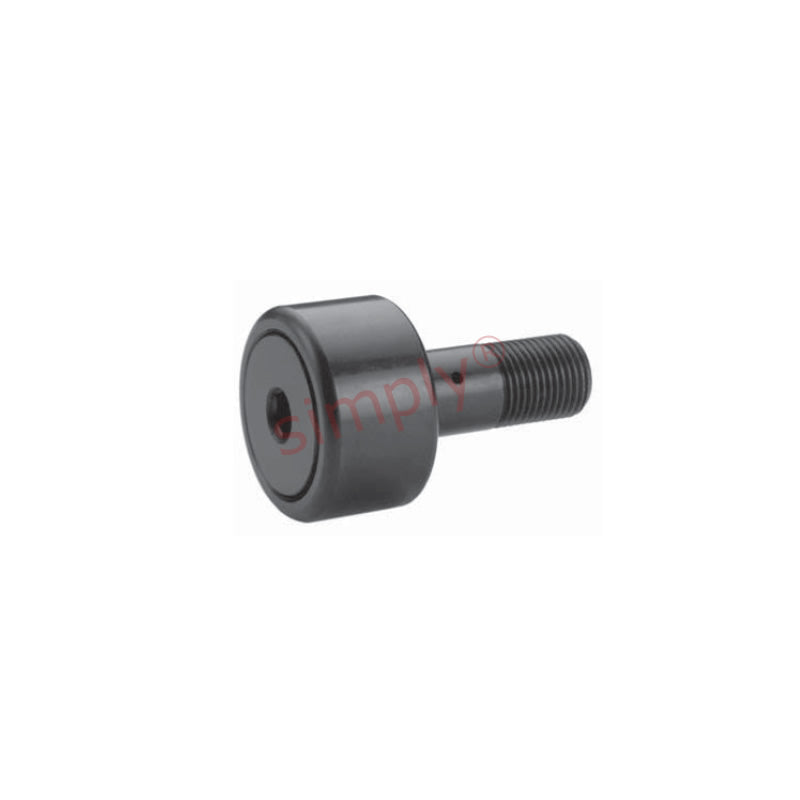

Major Brand SFH80B Hex Head Cylindrical Cam Follower 2-1/2 inch Outside Diameter
- Regular price
- $260.26 ex VAT
- Sale price
- $260.26
- Regular price
-
In stock
Quantity Price Breaks
3
$231.63
4
$218.62
9
$216.02
19
$213.41
29
$210.81
39
$208.21
49
$195.20
59
$192.59
249
$189.99
499
$187.39
999
$182.18
SKU:
SFH-80-B
Major Brand SFH80B Hex Head Cylindrical Cam Follower 2-1/2 inch Outside Diameter
- Regular price
- $260.26 ex VAT
- Sale price
- $260.26
- Regular price
-
Description
|
Cam Follower: These bearings are particularly well suited to applications with light to moderate loads operating at medium to higher speeds. These bearings feature continuous self-lubrication benefiting applications where lubricating the bearing is inconvenient, difficult or even impossible, or where dirt, dust or other contaminants can seep in causing needle, roller or ball bearings to seize up. Benefits: Continuous self-lubrication, clean lubrication, trouble-free in high humidity applications. |
Technical
| A | = | 2.5 inch |
| B | = | 1.5 inch |
| C | = | 1 inch |
| D | = | 2.25 inch |
| E | = | 1-1/8 inch |
| Thread class 2A F | = | 1-14 UNS |
| H | = | 3/8 inch |
| Load factor | = | 1.56 inch |
| Min boss | = | 1-5/16 inch |
| Housing bore | = | 1 inch |
| Recommended clamping torque | = | 2250 lbs |
