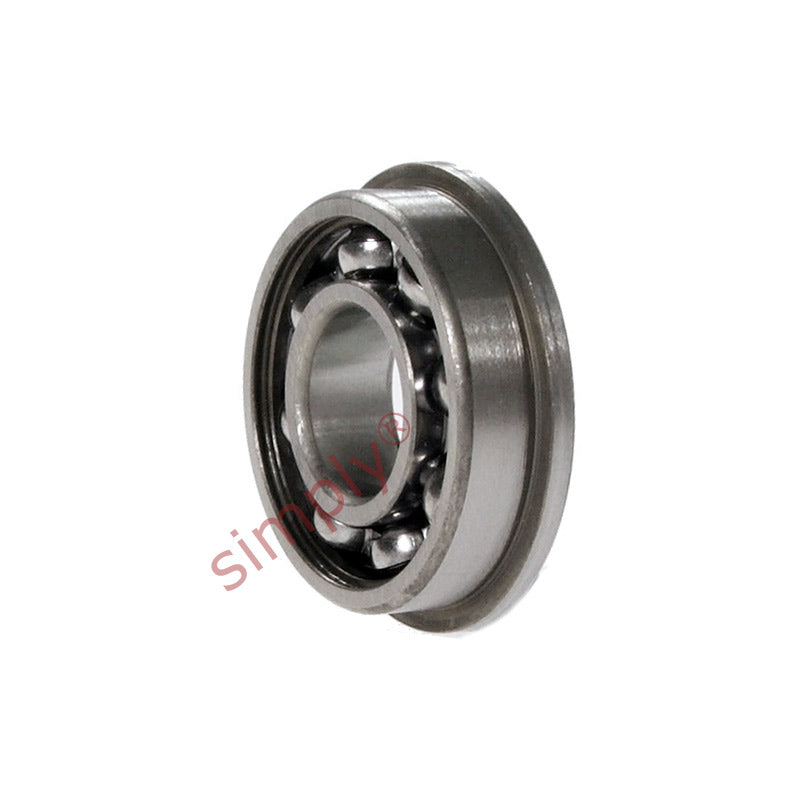

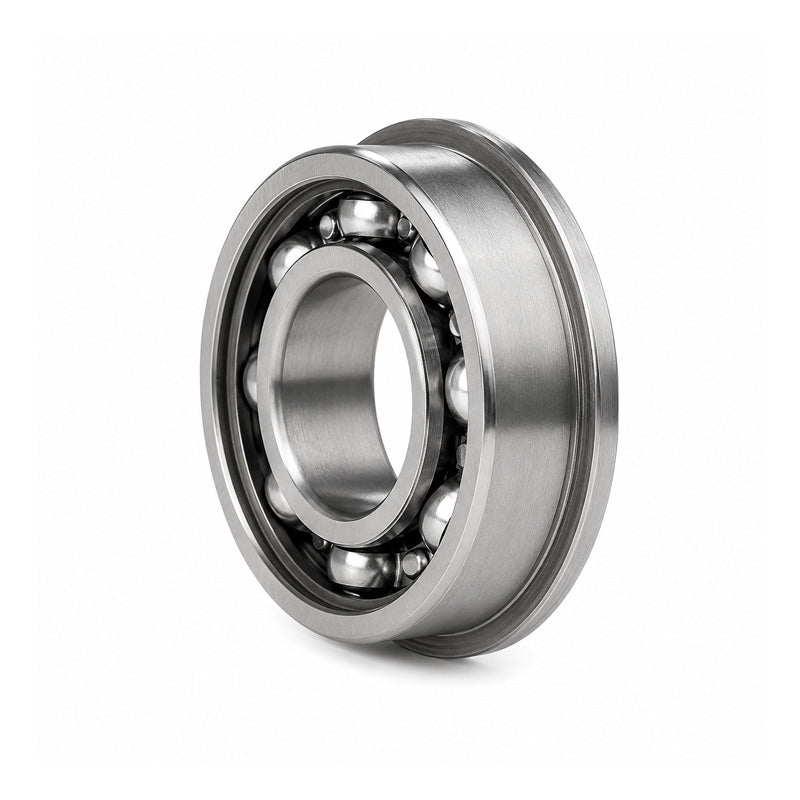

SF689 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 9x17x4mm

SKU: SF.689

SF689 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 9x17x4mm

$9.66 ex VAT
$9.66
ex VAT
In stock

Quantity Price Breaks

5 $8.60
9 $8.11
19 $8.02
24 $7.92
49 $7.82
74 $7.73
99 $7.25
199 $7.15
249 $7.05
499 $6.96
999 $6.76
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SF689 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 9x17x4mm
SKU: SF.689

SF689 Budget Stainless Steel Open Flanged Deep Groove Ball Bearing 9x17x4mm

$9.66 ex VAT
$9.66
ex VAT

Description

Stainless Steel Flanged Deep Groove Ball Bearings: Manufactured in stainless steel to the same principal sizes as standard chrome steel bearings. They have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports
Benefits: Cost effective replacement bearing, Flanged design, Higher corrosion resistance
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets.

Technical

Inside diameter d = 9mm
Outside diameter D = 17mm
Bearing width B = 4mm
Flange diameter P = 19mm
Flange width w = 1mm
