SKU: SER.211-32

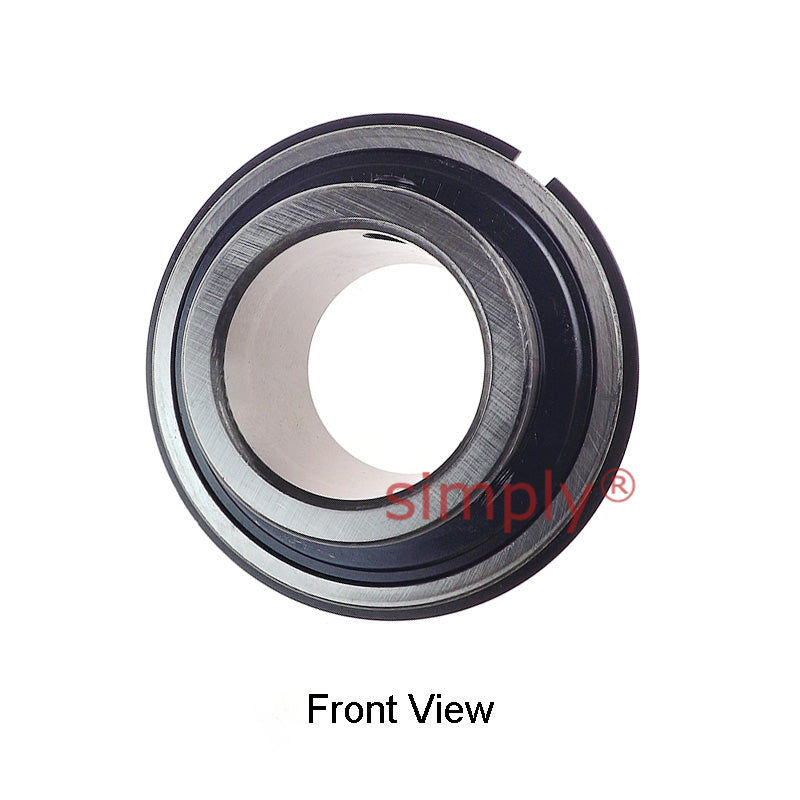

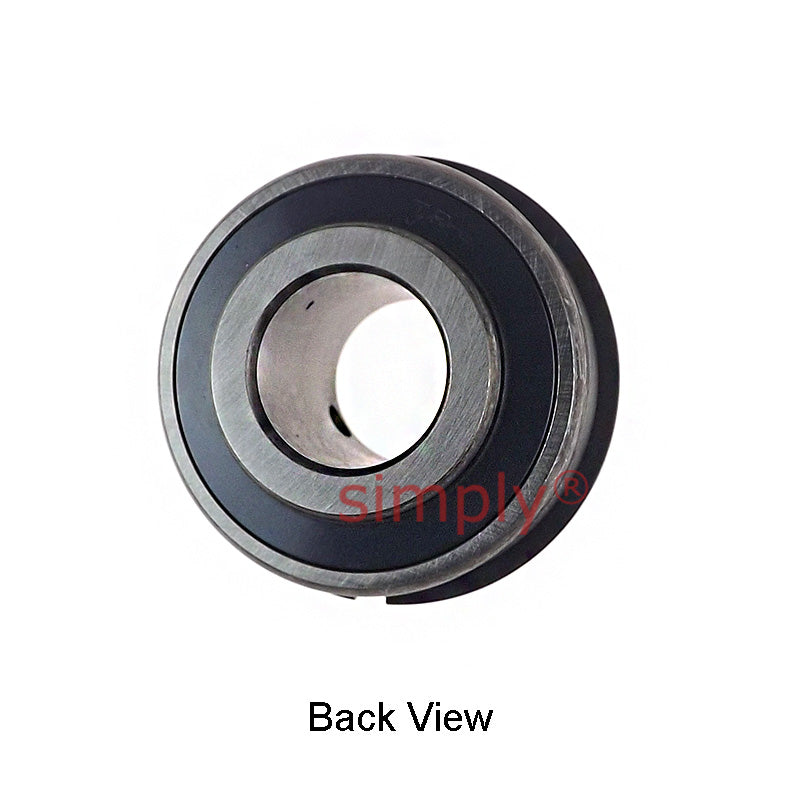

SER211-32 Imperial Bearing Insert and Snap Ring 2 inch Bore 100mm Outside Dia
- Regular price
- $65.92 ex VAT
- Sale price
- $65.92
- Regular price
-
In stock
Quantity Price Breaks
3
$58.67
4
$55.37
9
$54.71
19
$54.05
49
$53.40
99
$52.74
499
$49.44
999
$48.78
1999
$48.12
2999
$47.46
4999
$46.14
SKU:
SER.211-32
SER211-32 Imperial Bearing Insert and Snap Ring 2 inch Bore 100mm Outside Dia
- Regular price
- $65.92 ex VAT
- Sale price
- $65.92
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 2 inch |
| D | = | 100mm |
| Bi | = | 55.6mm |
| Be | = | 30.2mm |
| n | = | 22.2mm |
| m | = | 33.4mm |
| E | = | 24.22mm |
| a | = | 2.41mm |
| h | = | 7.5mm |
| R | = | 9.12mm |
| J | = | 3.28mm |
| P | = | 106.5mm |
| G | = | 9.5mm |
| Grub screw | = | 3/8" |
| -24UNF | = | Weight |
| 1.28 kg | = | Dynamic load |
| 3400 kgf | = | Static load |
| 2550 kgf | = | N/A |
