SKU: SER.207-20

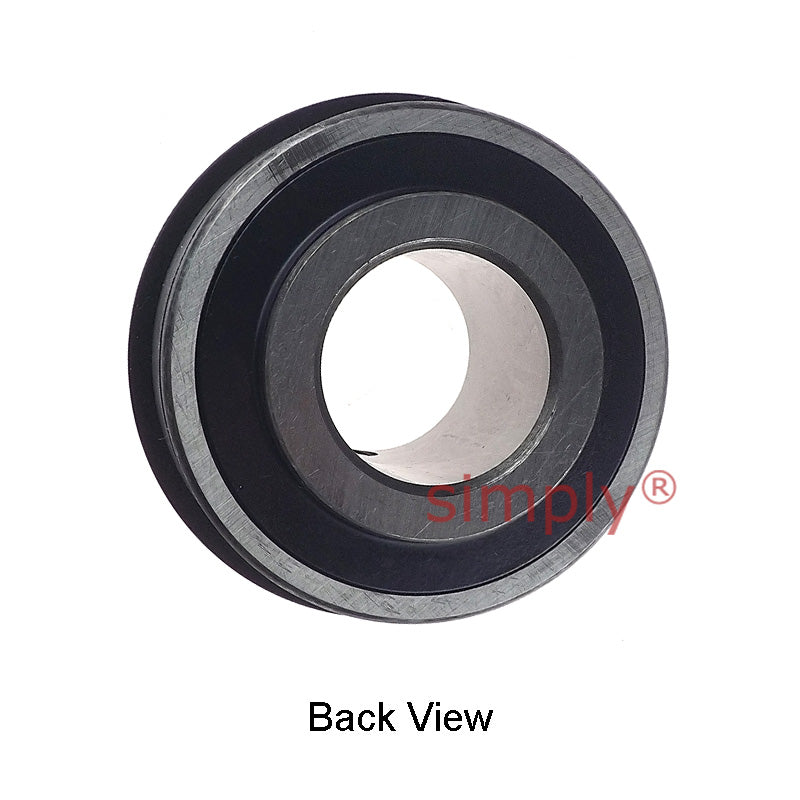

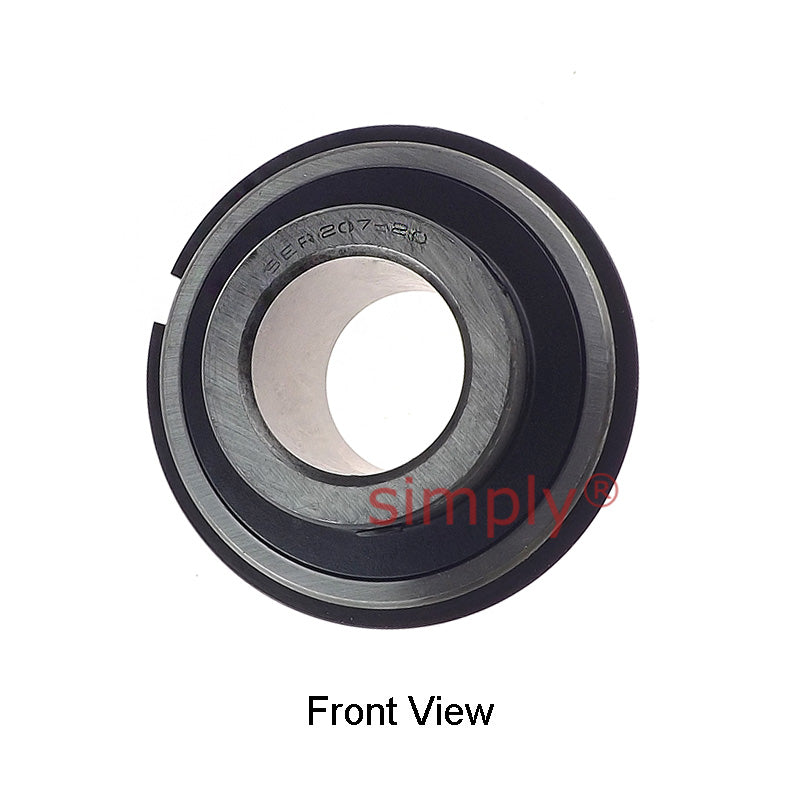

SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
- Regular price
- $32.37 ex VAT
- Sale price
- $32.37
- Regular price
-
In stock
Quantity Price Breaks
3
$28.81
4
$27.19
9
$26.87
19
$26.54
49
$26.22
99
$25.90
499
$24.28
999
$23.95
1999
$23.63
2999
$23.31
4999
$22.66
SKU:
SER.207-20
SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
- Regular price
- $32.37 ex VAT
- Sale price
- $32.37
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-1/4 inch |
| D | = | 72mm |
| Bi | = | 42.9mm |
| Be | = | 23.8mm |
| n | = | 17.5mm |
| m | = | 25.4mm |
| E | = | 18.62mm |
| a | = | 1.65mm |
| h | = | 5.6mm |
| R | = | 6.72mm |
| J | = | 3.28mm |
| P | = | 78.6mm |
| G | = | 6.5mm |
| Grub screw | = | 5/16" |
| -24UNF | = | Weight |
| 0.56 kg | = | Dynamic load |
| 2020 kgf | = | Static load |
| 1390 kgf | = | Rec max speed |
| 4500 rpm | = | N/A |
