SKU: SER.206-18

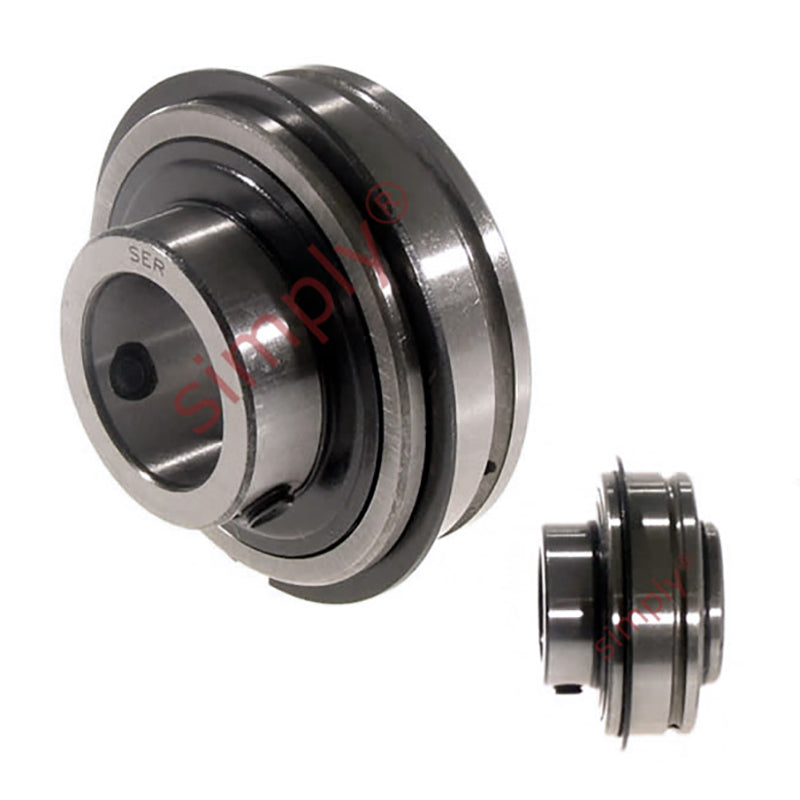

SER206-18 Imperial Bearing Insert and Snap Ring 1-1/8 inch Bore 62mm Outside Dia
- Regular price
- $30.19 ex VAT
- Sale price
- $30.19
- Regular price
-
In stock
Quantity Price Breaks
3
$26.87
4
$25.36
9
$25.06
19
$24.76
49
$24.45
99
$24.15
499
$22.64
999
$22.34
1999
$22.04
2999
$21.74
4999
$21.13
SKU:
SER.206-18
SER206-18 Imperial Bearing Insert and Snap Ring 1-1/8 inch Bore 62mm Outside Dia
- Regular price
- $30.19 ex VAT
- Sale price
- $30.19
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-1/8 inch |
| D | = | 62mm |
| Bi | = | 38.1mm |
| Be | = | 22.2mm |
| n | = | 15.9mm |
| m | = | 22.2mm |
| E | = | 17.02mm |
| a | = | 1.65mm |
| h | = | 5.6mm |
| R | = | 5.92mm |
| J | = | 3.28mm |
| P | = | 67.7mm |
| G | = | 5.6mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.39 kg |
| Dynamic load | = | 1530 kgf |
| Static load | = | 1020 kgf |
