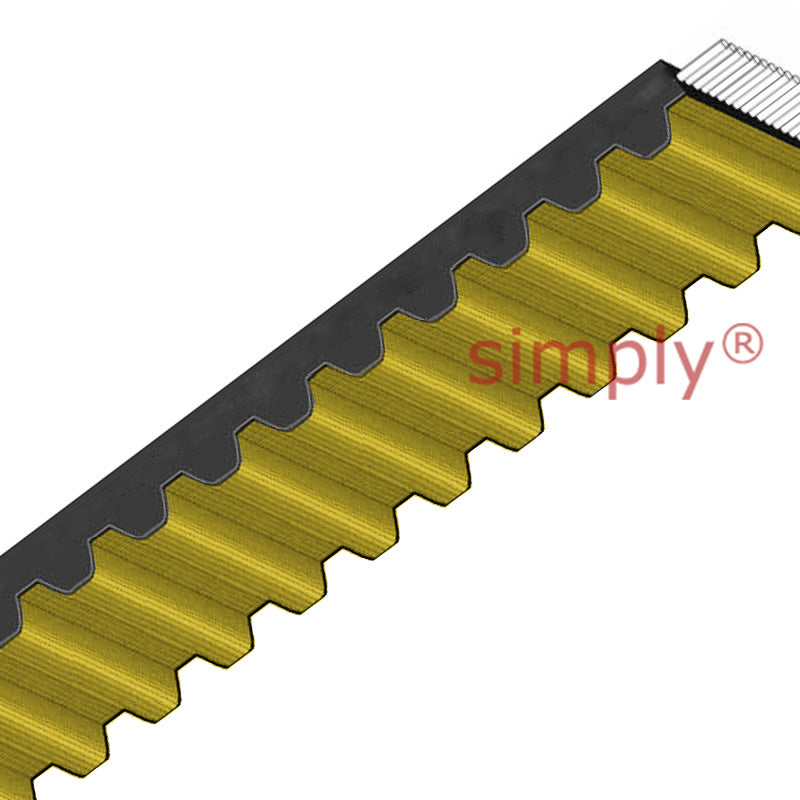

ContiTech SCC14M2450X125 Synchrochain Carbon Timing Belt 125mm Width 2450mm Length 175 Teeth

SKU: SCC14M2450X125

ContiTech SCC14M2450X125 Synchrochain Carbon Timing Belt 125mm Width 2450mm Length 175 Teeth

$3,314.94 ex VAT
$3,314.94
ex VAT
Not in stock

Quantity Price Breaks

3 $2,950.30
5 $2,784.55
9 $2,751.40
19 $2,718.25
49 $2,685.10
74 $2,651.95
99 $2,486.21
199 $2,453.06
249 $2,419.91
499 $2,386.76
999 $2,320.46
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
ContiTech SCC14M2450X125 Synchrochain Carbon Timing Belt 125mm Width 2450mm Length 175 Teeth
SKU: SCC14M2450X125

ContiTech SCC14M2450X125 Synchrochain Carbon Timing Belt 125mm Width 2450mm Length 175 Teeth

$3,314.94 ex VAT
$3,314.94
ex VAT

Description

Carbon Synchrochain Timing Belts: These timing belts are high-performance timing belts engineered for demanding applications, withstanding temperatures from -40°C to +80°C and resisting oils, grease, and tropical climates. Their high-tensile carbon tension members provide exceptional stability, allowing them to handle maximum torques with minimal stretch and initial tension loss. Offering up to 30% higher power output and double the service life of traditional belts, it is ideal for various engineering fields. The belt's intelligent design ensures smooth, reliable power transmission and allows for up to 80% reduction in width while maintaining power output, reducing system costs and enhancing efficiency.
Benefits: Maintenance-free, withstands reverse flexing, resistant to various chemicals and oils

Technical

Number of Teeth = 175
Belt Length = 2450mm
Belt Width = 125mm
Tooth Pitch t = 14mm
Belt Depth B1 = 10mm
Belt Depth B2 = 6.1mm
Temperature Range = -40 to 80 Deg C
Dynamic Stressing Range = Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications = 33600 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) = 44000 N
Weight Kg = 2.392 kg
