SKU: SAKB5F-SKF

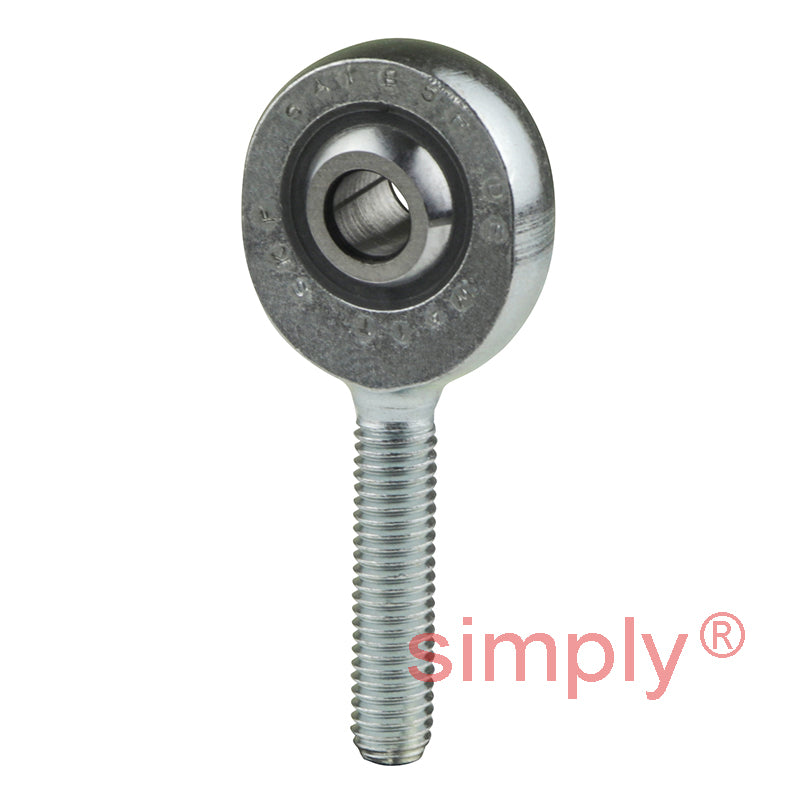

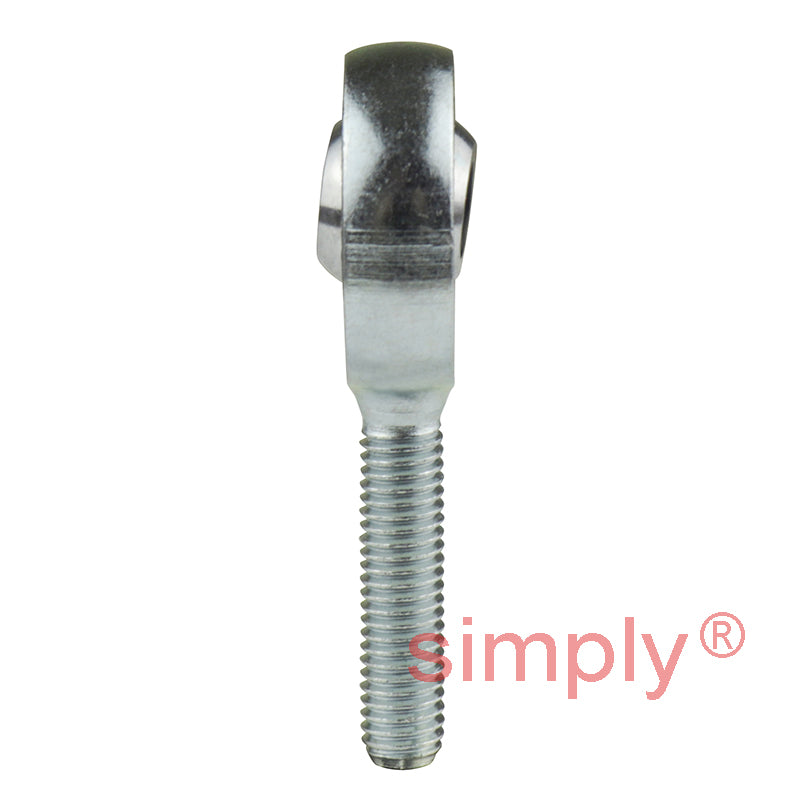

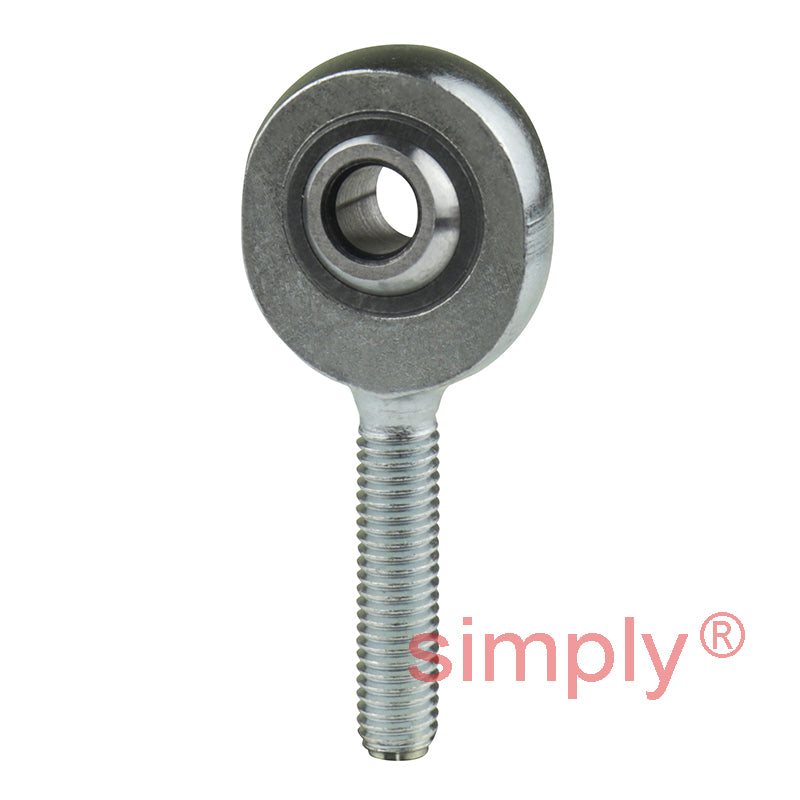

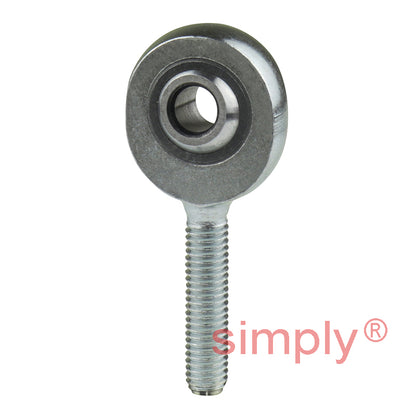

SKF SAKB5F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
- Regular price
- $52.33 ex VAT
- Sale price
- $52.33
- Regular price
-
In stock
Quantity Price Breaks
10+
$46.57
19+
$43.96
29+
$43.43
39+
$42.91
49+
$42.39
74+
$41.86
99+
$39.25
199+
$38.72
249+
$38.20
499+
$37.68
999+
$36.63
SKU:
SAKB5F-SKF
SKF SAKB5F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M5 Thread
- Regular price
- $52.33 ex VAT
- Sale price
- $52.33
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
