SKU: SAKB16F-SKF

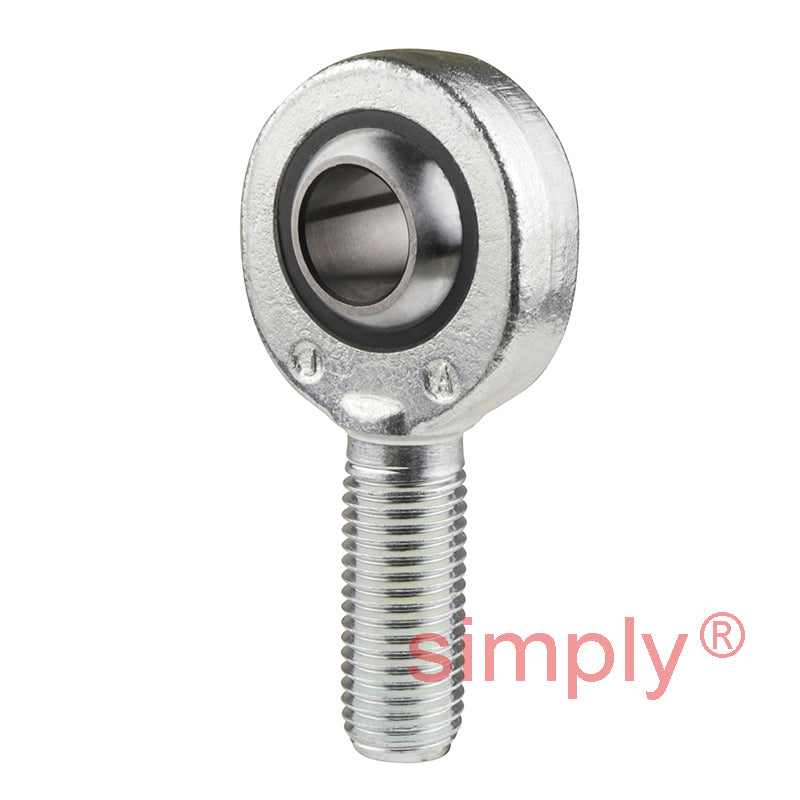

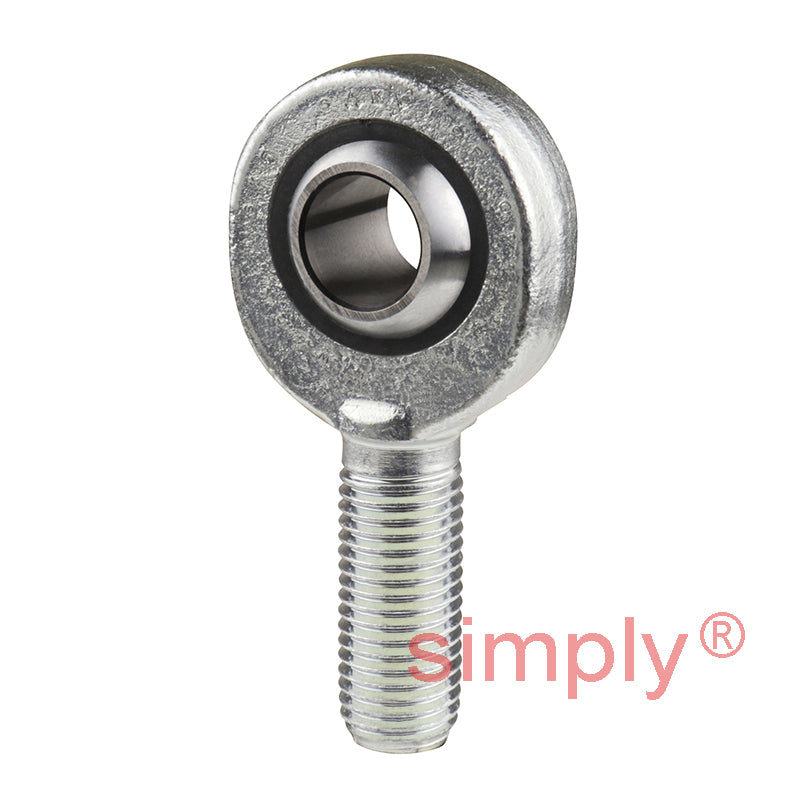

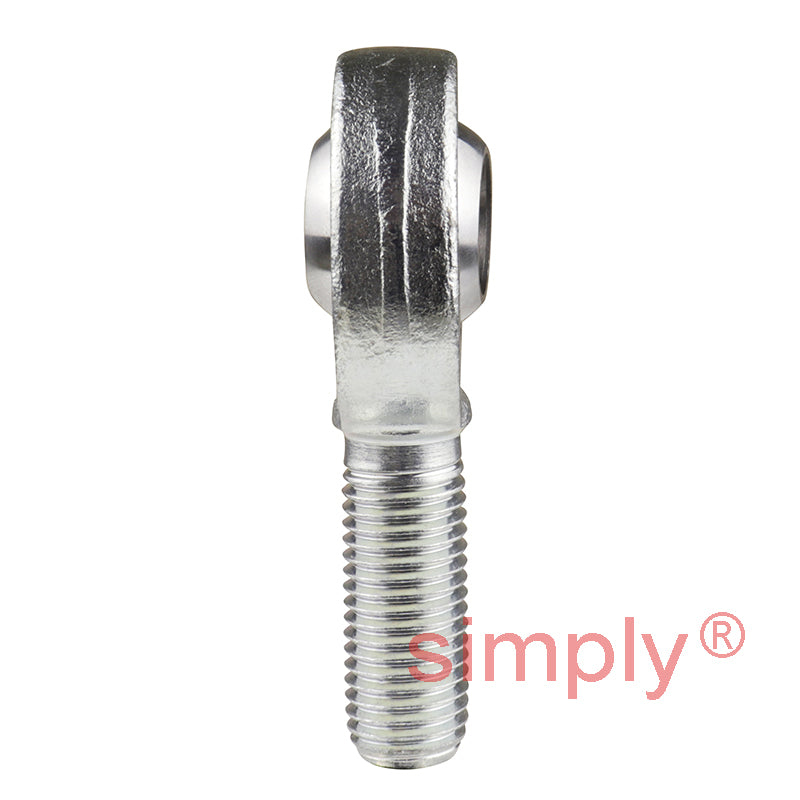

SKF SAKB16F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
- Regular price
- $85.21 ex VAT
- Sale price
- $85.21
- Regular price
-
In stock
Quantity Price Breaks
10
$75.84
19
$71.58
29
$70.72
39
$69.87
49
$69.02
74
$68.17
99
$63.91
199
$63.06
249
$62.20
499
$61.35
999
$59.65
SKU:
SAKB16F-SKF
SKF SAKB16F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
- Regular price
- $85.21 ex VAT
- Sale price
- $85.21
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
