SKU: SAKB12F-SKF

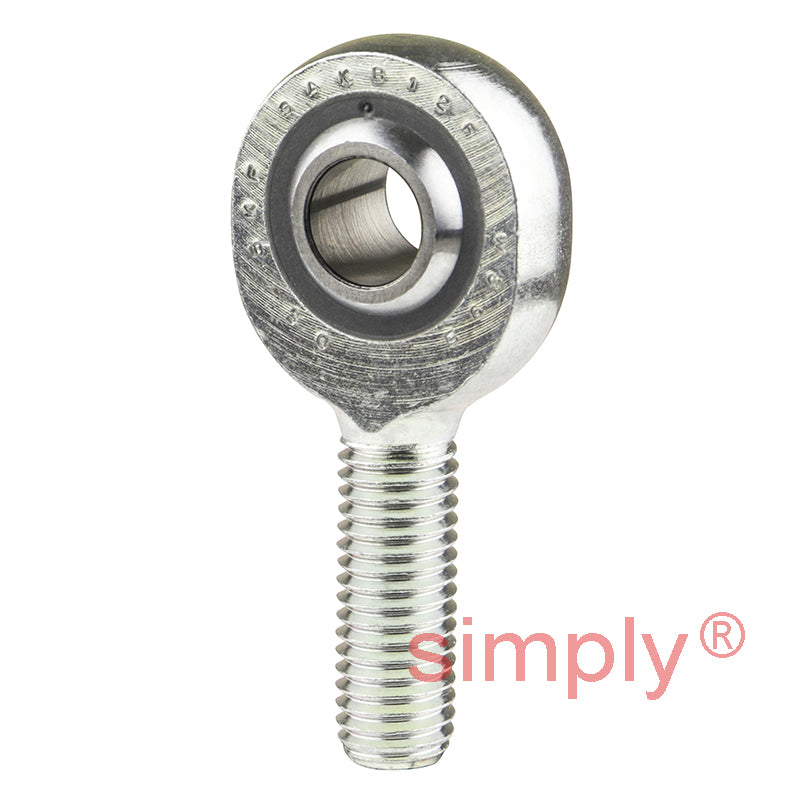

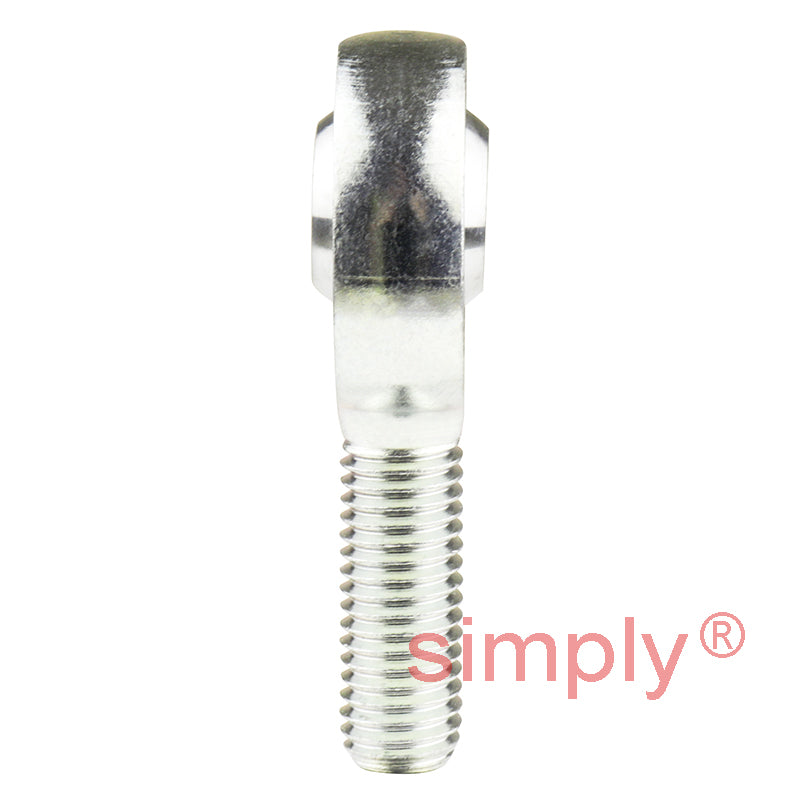

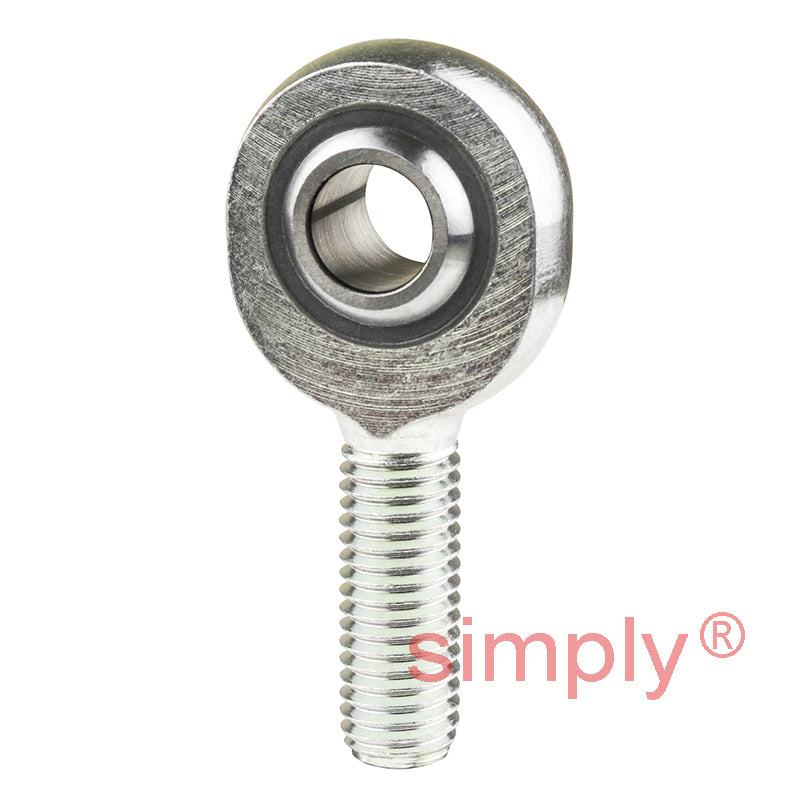

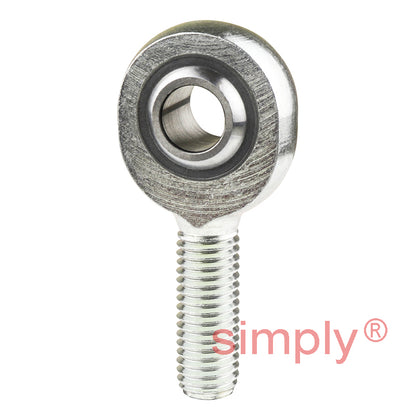

SKF SAKB12F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- $75.56 ex VAT
- Sale price
- $75.56
- Regular price
-
In stock
Quantity Price Breaks
10
$67.25
19
$63.47
29
$62.71
39
$61.96
49
$61.20
74
$60.45
99
$56.67
199
$55.91
249
$55.16
499
$54.40
999
$52.89
SKU:
SAKB12F-SKF
SKF SAKB12F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- $75.56 ex VAT
- Sale price
- $75.56
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
