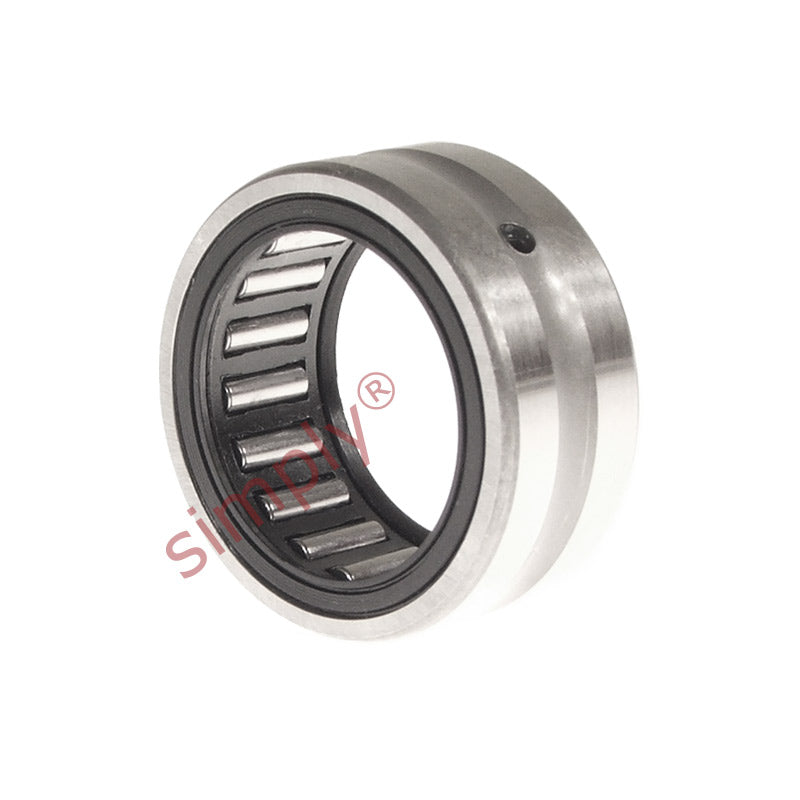

RNA4860 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 330x380x80mm

SKU: RNA4860-EU

RNA4860 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 330x380x80mm

$3,155.08 ex VAT
$3,155.08
ex VAT
Not in stock

Quantity Price Breaks

10 $2,808.02
19 $2,650.27
29 $2,618.72
39 $2,587.17
49 $2,555.61
74 $2,524.06
99 $2,366.31
199 $2,334.76
249 $2,303.21
499 $2,271.66
999 $2,208.56
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RNA4860 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 330x380x80mm
SKU: RNA4860-EU

RNA4860 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 330x380x80mm

$3,155.08 ex VAT
$3,155.08
ex VAT

Description

Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies.
Benefits: Economical solution, non separable, can be used with a wide range of inner rings

Technical

Fw = 330mm
D = 380mm
C = 80mm
Dynamic load C = 594000 N
Static load Co = 1800000 N
Fatigue load limit Pu = 170000 N
Speed in grease = 750 rpm
Speed in oil = 1100 rpm
r1r2 = 2.1mm
Da max = 369mm
ra max = 2mm
Weight = 12500 g
