SKU: RMEO50-XL-INA

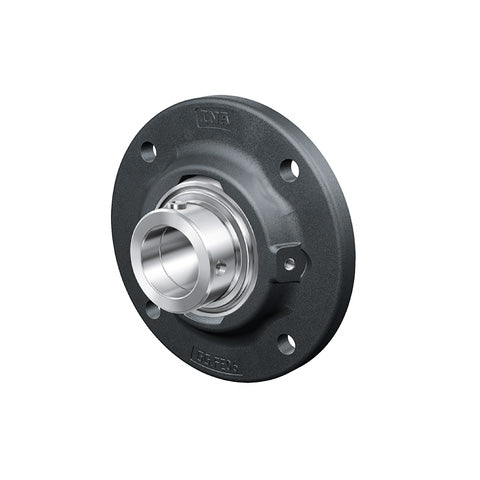

INA RMEO50XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 50mm Bore
- Regular price
- $362.17 ex VAT
- Sale price
- $362.17
- Regular price
-
In stock
Quantity Price Breaks
10+
$322.33
19+
$304.22
29+
$300.60
39+
$296.98
49+
$293.36
74+
$289.74
99+
$271.63
199+
$268.01
249+
$264.38
499+
$260.76
999+
$253.52
SKU:
RMEO50-XL-INA
INA RMEO50XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 50mm Bore
- Regular price
- $362.17 ex VAT
- Sale price
- $362.17
- Regular price
-
Description
|
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft. |
