SKU: RCK50-40x45

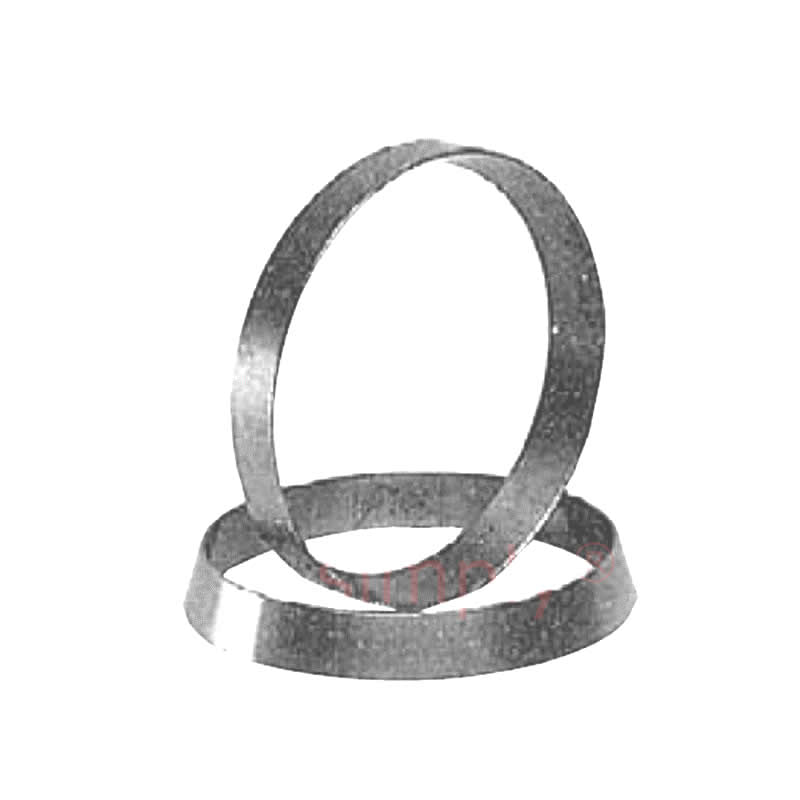

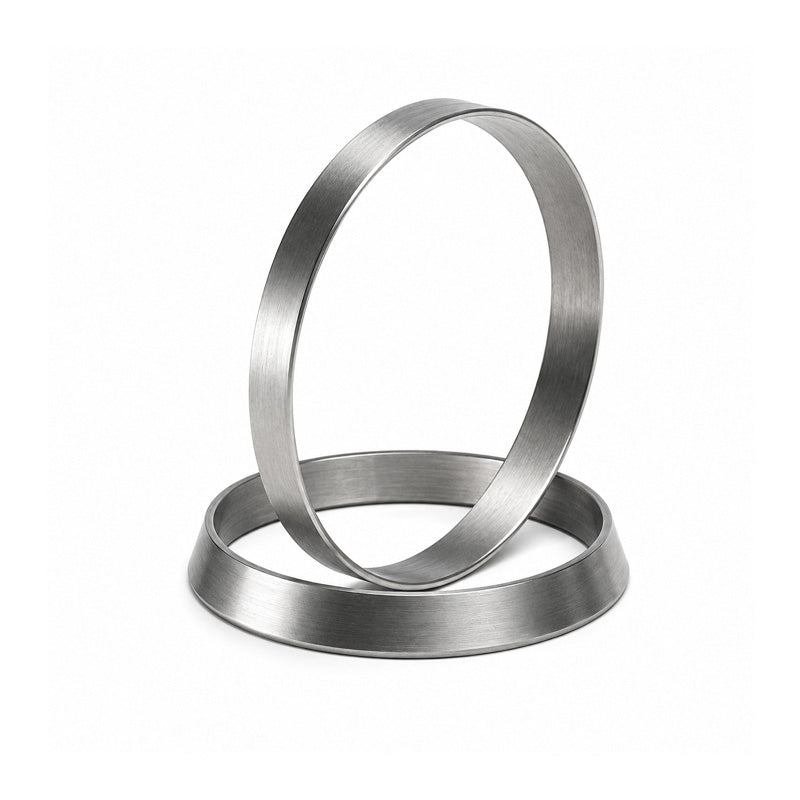

RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
- Regular price
- $8.38 ex VAT
- Sale price
- $8.38
- Regular price
-
In stock
Quantity Price Breaks
10
$7.46
20
$7.04
30
$6.96
50
$6.87
75
$6.79
100
$6.70
200
$6.29
250
$6.20
500
$6.12
1000
$6.03
SKU:
RCK50-40x45
RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
- Regular price
- $8.38 ex VAT
- Sale price
- $8.38
- Regular price
-

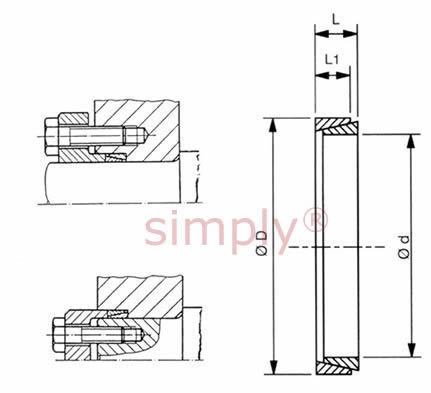

Technical
| d | = | 40mm |
| D | = | 45mm |
| L | = | 8mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 6.6mm | |
| Torque Cap. M Nm | = | 231 |
| Axial Force F kN | = | 0.8 |
| Shaft Ps N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 115 | |
| Hub Ph N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 105 | |
| Axial Force to Clamp kN | = | 66 |
| Kg | = | 23 |
| Min. Hub Dia. Assy. A | = | 63.3 |
| Min. Hub Dia. Assy. B | = | 58.9 |
| Min. Hub Dia. Assy. C | = | 55 |
