SKU: RCK15-25x65

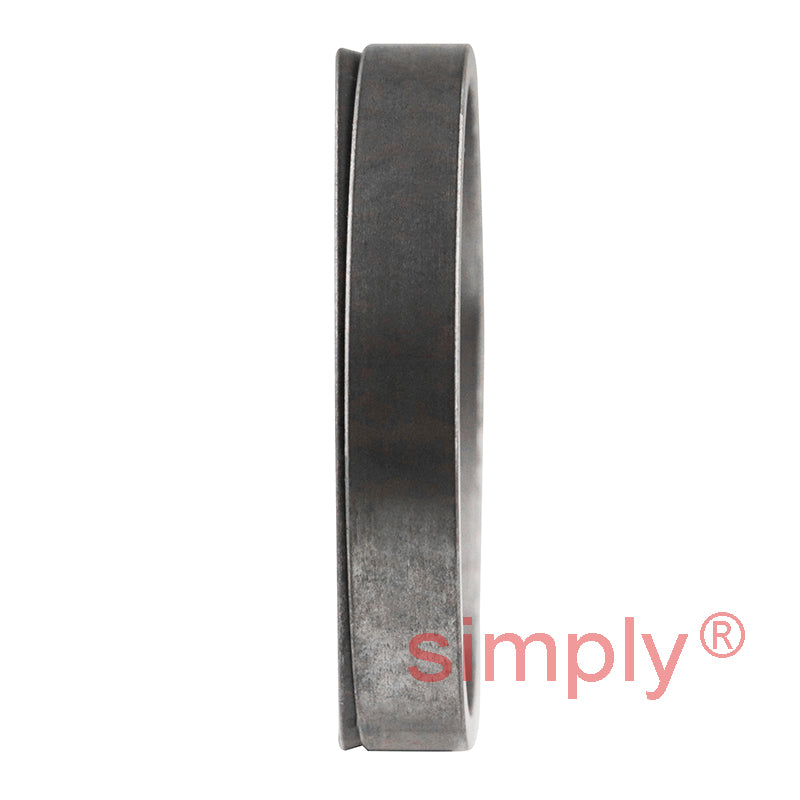

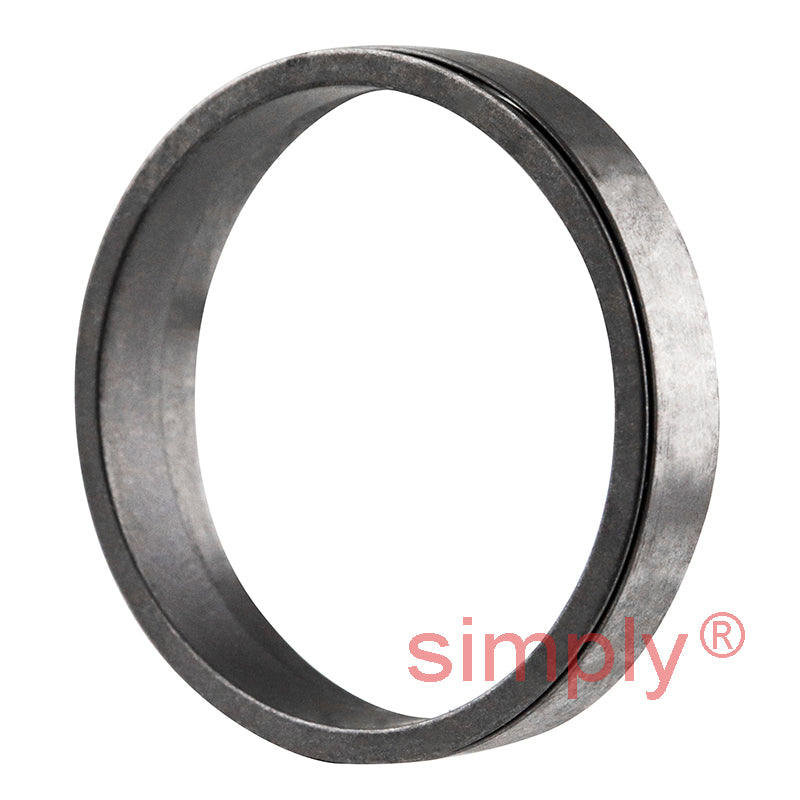

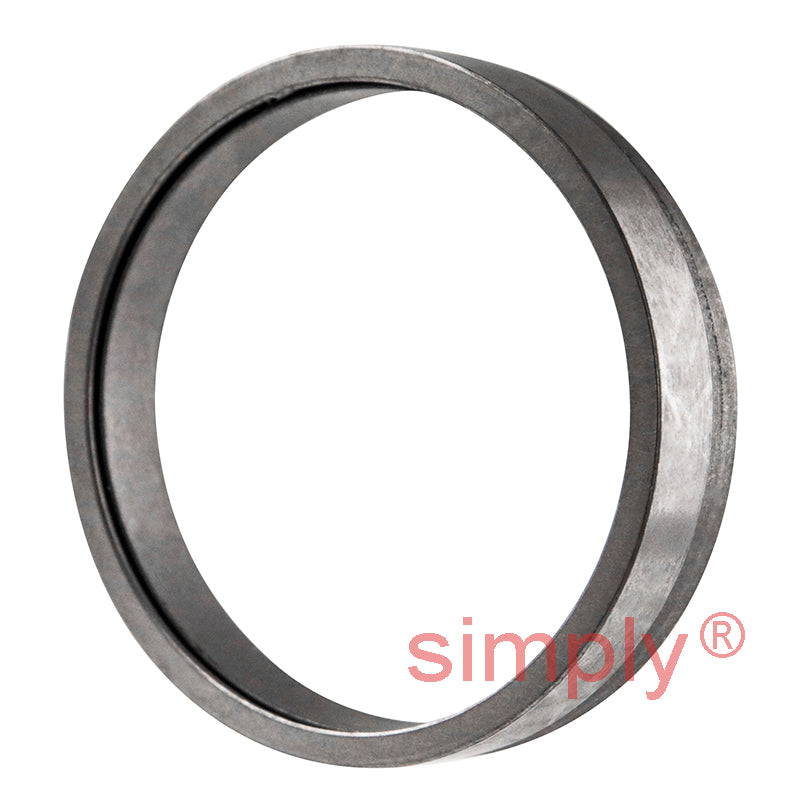

RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
- Regular price
- $26.88 ex VAT
- Sale price
- $26.88
- Regular price
-
In stock
Quantity Price Breaks
10
$23.92
20
$22.58
30
$22.31
50
$22.04
75
$21.77
100
$21.50
200
$20.16
250
$19.89
500
$19.62
1000
$19.35
SKU:
RCK15-25x65
RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
- Regular price
- $26.88 ex VAT
- Sale price
- $26.88
- Regular price
-

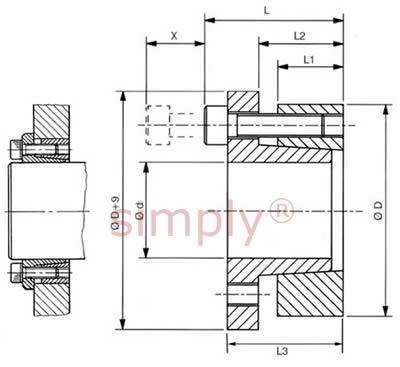

Technical
| d | = | 25mm |
| D | = | 65mm |
| L | = | 39mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 17mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 22mm | |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 31mm | |
| X | = | 25mm |
| Torque Cap. M Nm | = | 637 |
| Axial Force F kN | = | 51 |
| Shaft Ps N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 320 | |
| Hub Ph N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 122 | |
| M8 | = | M8 |
| Clamping Screws Torque Nm | = | 41 |
| Kg | = | 0.63 |
| Min. Hub Dia. Assy. A | = | 97 |
| Min. Hub Dia. Assy. B | = | 89 |
| Min. Hub Dia. Assy. C | = | 82 |
