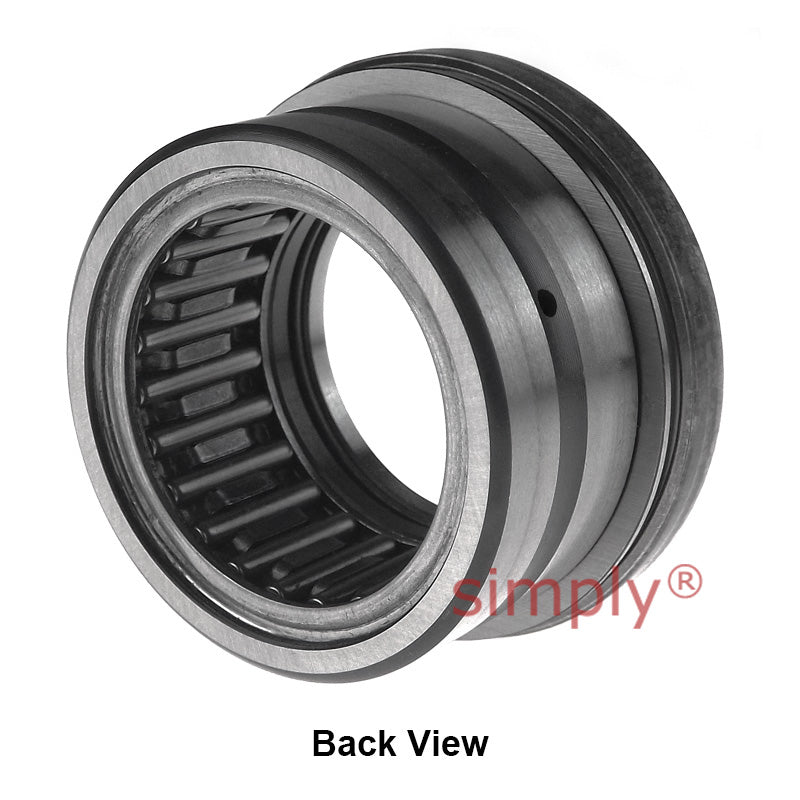

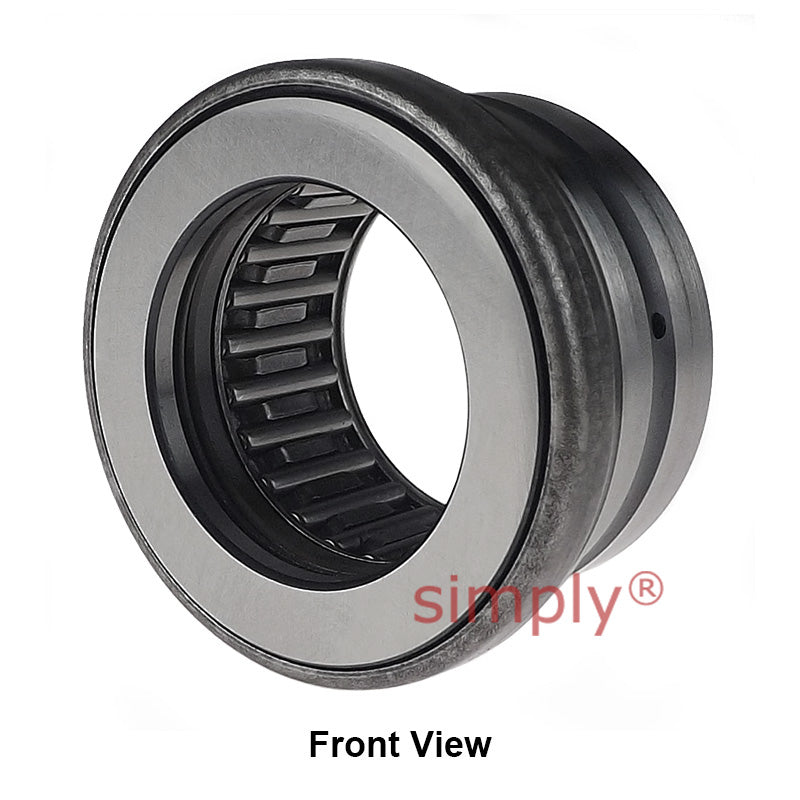

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

SKU: RAXZ560-MB

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

$1,396.22 ex VAT
$1,396.22
ex VAT
Not in stock

Quantity Price Breaks

10 $1,242.64
19 $1,172.82
29 $1,158.86
39 $1,144.90
49 $1,130.94
74 $1,116.98
99 $1,047.17
199 $1,033.20
249 $1,019.24
499 $1,005.28
999 $977.35
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
SKU: RAXZ560-MB

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

$1,396.22 ex VAT
$1,396.22
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

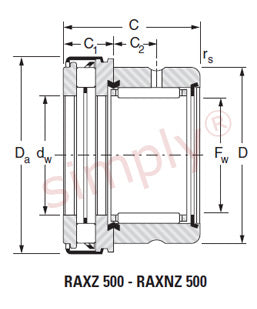

Technical

Fw = 60mm
D = 72mm
C = 36mm
da = 60mm
Da = 86mm
C1 = 15mm
C2 = 11mm
rs min = 1.3mm
Radial dynamic load = 31.9 kN
Radial static load = 78.1 kN
Axial dynamic load = 71 kN
Axial static load = 255 kN
Speed rating = 3.5 rpm
Weight = 0.423 kg
