SKU: RAXF718-MB

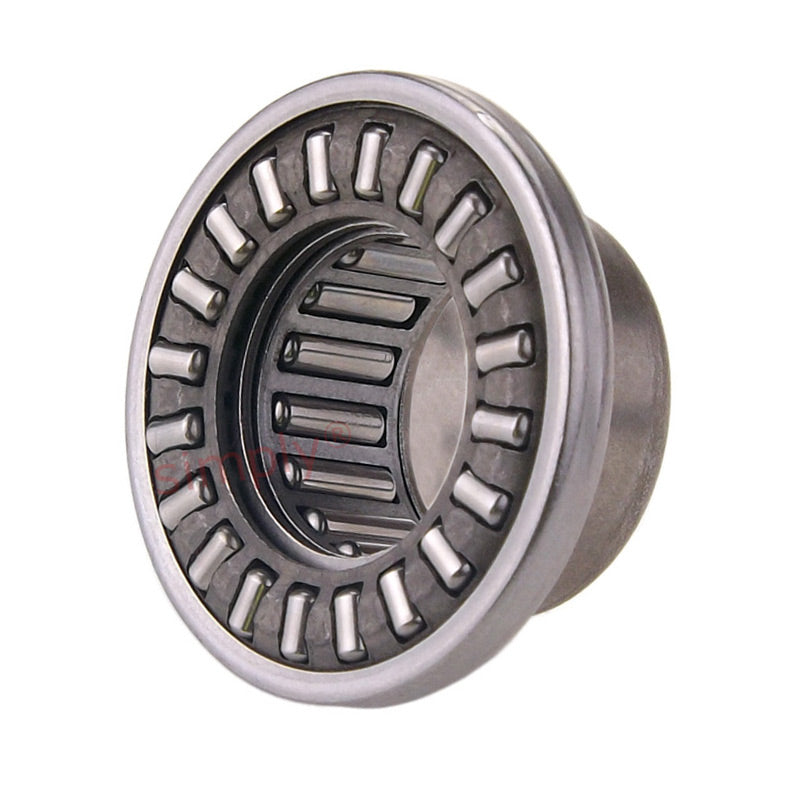

Major Brand RAXF 718 Closed Needle Thrust Bearing 18x24x18.2mm Allow 2-3 Days
- Regular price
- $58.57 ex VAT
- Sale price
- $58.57
- Regular price
-
Not in stock
Quantity Price Breaks
10
$52.13
19
$49.20
29
$48.61
39
$48.03
49
$47.44
74
$46.86
99
$43.93
199
$43.34
249
$42.76
499
$42.17
999
$41.00
SKU:
RAXF718-MB
Major Brand RAXF 718 Closed Needle Thrust Bearing 18x24x18.2mm Allow 2-3 Days
- Regular price
- $58.57 ex VAT
- Sale price
- $58.57
- Regular price
-
Description
Nadella Combined Closed End Needle Roller Bearings : Closed-end combined bearings ensure perfect sealing at the end of a shaft and do not require the use of blind housings or end caps. The shape of this outer ring prevents weakness in the area between the axial component and the radial component, even after the latter has been tightly fitted into a housing. |

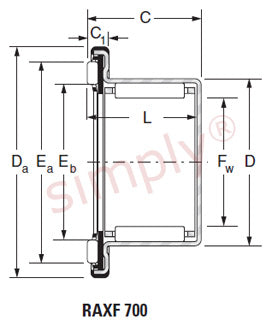

Technical
| Fw | = | 18mm |
| D | = | 24mm |
| C | = | 18.2mm |
| Da | = | 33.5mm |
| Eb | = | 21mm |
| Ea | = | 28.6mm |
| C1 | = | 4.2mm |
| L | = | 17.2 |
| Radial dynamic load | = | 11.5 |
| Radial static load | = | 17.7 kN |
| Axial dynamic load | = | 8 kN |
| Axial static load | = | 23 kN |
| Limit loads radial | = | 5.8 kN |
| Limit loads axial | = | 16 kN |
| Speed rating | = | 10000 rpm |
| Housing | = | 24mm |
| GO plug-gauges | = | 18.009mm |
| NO-GO plug-gauges | = | 18.035mm |
| Inner ring | = | JR 15x18x16.5 |
| Weight | = | 0.03 kg |
