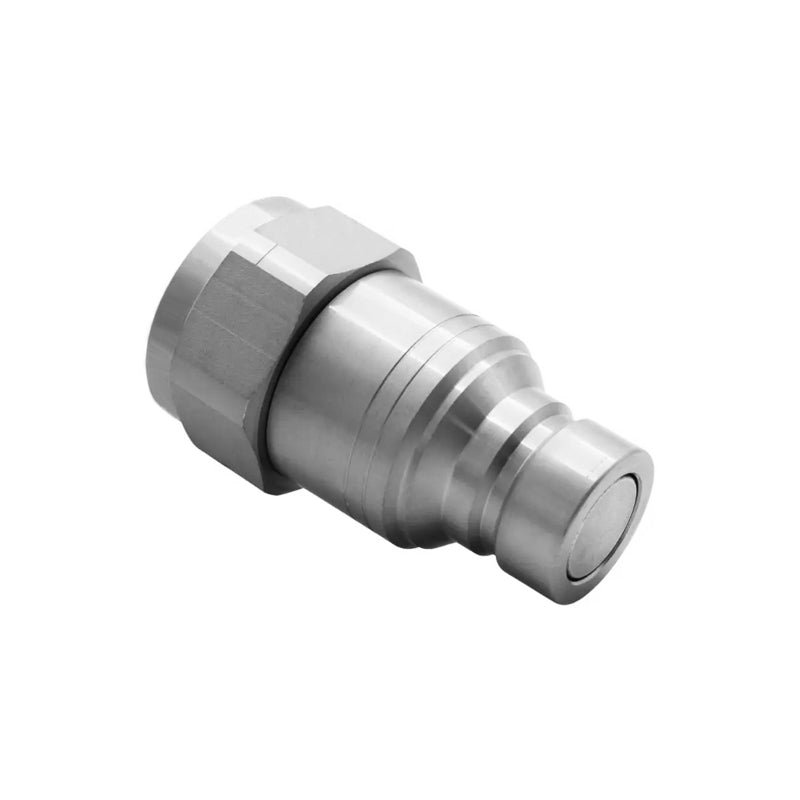

1 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days

SKU: QRMF-16-HQ19-MB

1 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days

$81.84 ex VAT
$81.84
ex VAT
Not in stock

Quantity Price Breaks

3 $72.84
5 $68.75
9 $67.93
19 $67.11
49 $66.29
74 $65.47
99 $61.38
199 $60.56
249 $59.74
499 $58.92
999 $57.29
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
1 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days
SKU: QRMF-16-HQ19-MB

1 inch BSP Male Flat Face Quick Release Coupling - Allow 2-3 Days

$81.84 ex VAT
$81.84
ex VAT

Description

BSP Male Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.

Technical

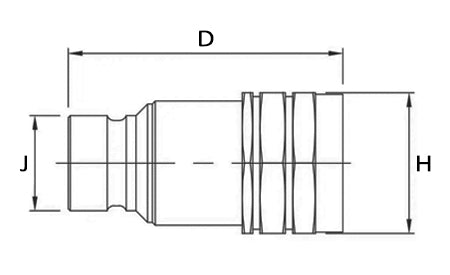

Thread Size = 1 inch
Total Length (D) = 84mm
Nut Size (H) = 50.3mm
Body Size (J) = 30mm
Maximum Working Pressure = 350 bar
Coupled Burst Pressure = 1450 bar
Male Burst Pressure = 1100 bar
Rated Flow = 100 lpm
Material = Zinc-Nickel Coated Steel
Weight = 0.491 kg
