SKU: QRM-16-MB

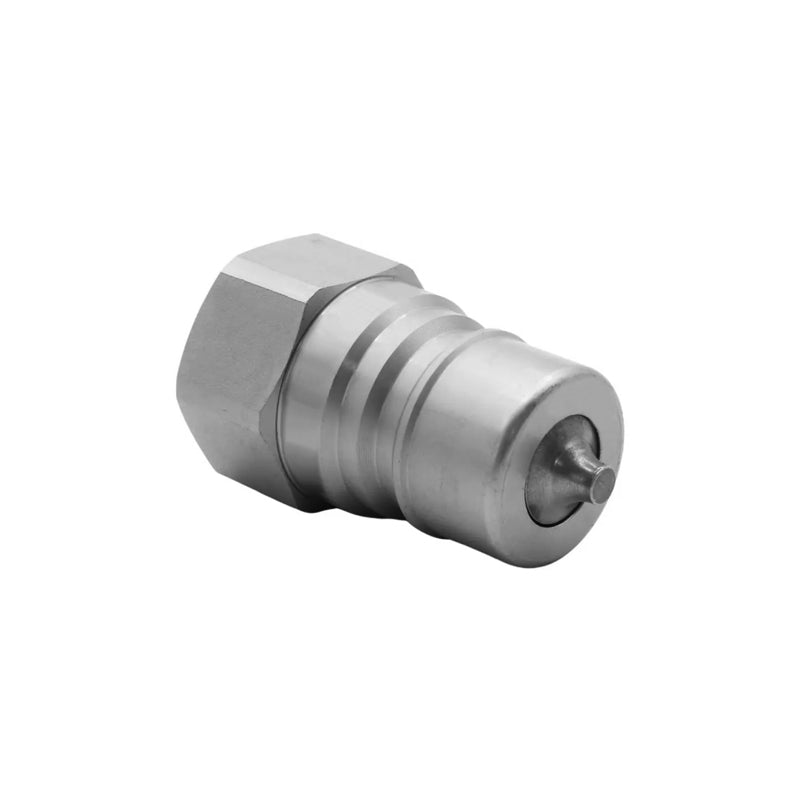

1 inch BSP Male Quick Release Coupling - ISO A - Allow 2-3 Days
- Regular price
- $28.51 ex VAT
- Sale price
- $28.51
- Regular price
-
Quantity Price Breaks
1 inch BSP Male Quick Release Coupling - ISO A - Allow 2-3 Days
- Regular price
- $28.51 ex VAT
- Sale price
- $28.51
- Regular price
-
Description
BSP ISO A Male Quick Release Coupling: These quick-release couplings from our IA Series are designed for tough agricultural and industrial applications. Made from carbon steel with zinc-nickel plating, it offers exceptional corrosion resistance, lasting over 1200 hours in salt spray tests. This coupling features nitrile seals (with FKM options) and operates efficiently at temperatures from -40°C to 106°C. Its locking ball system ensures quick, secure connections, while balanced spring poppet valves allow for bidirectional flow. Complete your setup with available accessories like dust caps and seal kits. Choose this coupling for unmatched quality and reliability in your projects.
Benefits: Tough and durable design, high resistance to corrosion, quick connection locking ball system
Technical

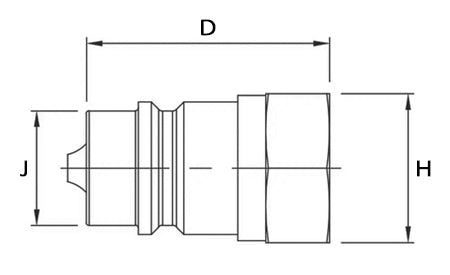

| Thread Size | = | 1 inch |
| Total Length (D) | = | 59.5mm |
| Nut Size (H) | = | 41mm |
| Body Size (J) | = | 34.3mm |
| Maximum Working Pressure | = | 250 bar |
| Coupled Burst Pressure | = | 1200 bar |
| Male Burst Pressure | = | 1100 bar |
| Rated Flow | = | 189 lpm |
| Material | = | Zinc-Nickel Coated Steel |
| Weight | = | 0.275 kg |
