SKU: QRF-12-MB

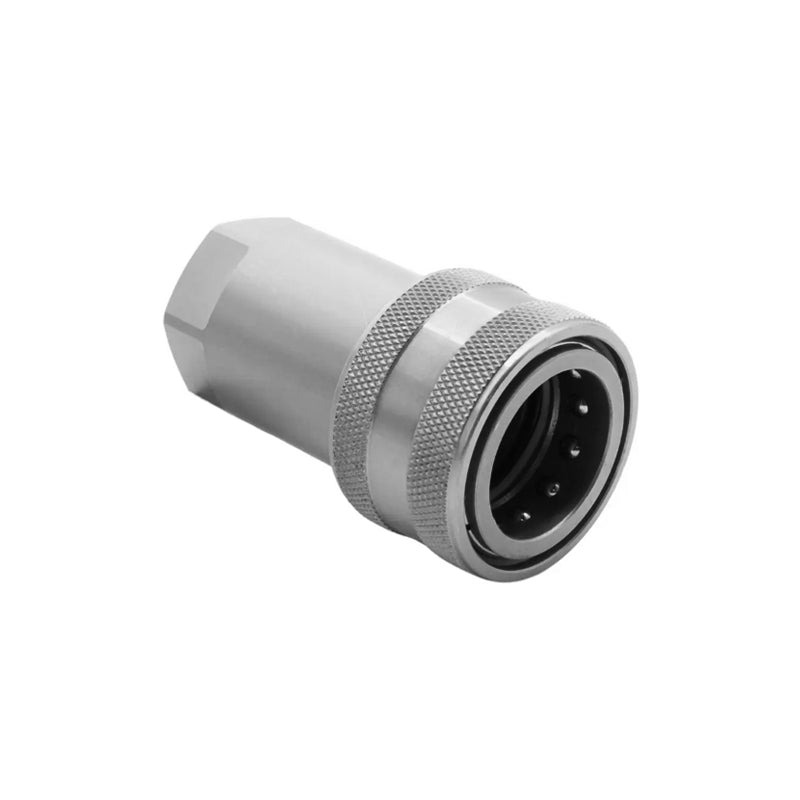

3/4 inch BSP Female Quick Release Coupling - ISO A - Allow 2-3 Days
- Regular price
- $43.31 ex VAT
- Sale price
- $43.31
- Regular price
-
Quantity Price Breaks
3/4 inch BSP Female Quick Release Coupling - ISO A - Allow 2-3 Days
- Regular price
- $43.31 ex VAT
- Sale price
- $43.31
- Regular price
-
Description
BSP ISO A Female Quick Release Coupling: These quick-release coupling from our IA Series, are designed for durability in agricultural and industrial applications. Made from carbon steel with zinc-nickel plating, it provides outstanding corrosion resistance, lasting over 1200 hours in salt spray tests. Fitted with nitrile seals (FKM options available), it operates at temperatures from -40 Deg C to 106 Deg C. The quick connection locking ball system and balanced spring poppet valves ensure efficient bidirectional flow. Complete your setup with compatible accessories like dust caps and seal kits. Choose this coupling for superior quality and reliability in any project.
Benefits: Tough and durable design, high resistance to corrosion, quick connection locking ball system
Technical

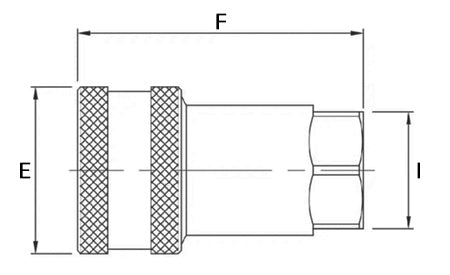

| Thread Size | = | 3/4 inch |
| Body Size (D1) | = | 48mm |
| Total Length (F) | = | 80.2mm |
| Nut Size (I) | = | 34mm |
| Maximum Working Pressure | = | 350 bar |
| Coupled Burst Pressure | = | 1300 bar |
| Female Burst Pressure | = | 1200 bar |
| Rated Flow | = | 106 lpm |
| Material | = | Zinc-Nickel Coated Steel |
| Weight | = | 0.522 kg |
