Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

SKU: POSB8

Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

$22.63 ex VAT
$22.63
ex VAT
In stock

Quantity Price Breaks

10 $20.14
19 $19.01
29 $18.78
39 $18.56
49 $18.33
74 $18.10
99 $16.97
199 $16.75
249 $16.52
499 $16.29
999 $15.84
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread
SKU: POSB8

Budget POSB8 Right Hand Steel / Bronze Lined Plain Male Rod End 1/2 inch Bore 0.5000-20UNF Thread

$22.63 ex VAT
$22.63
ex VAT

Description

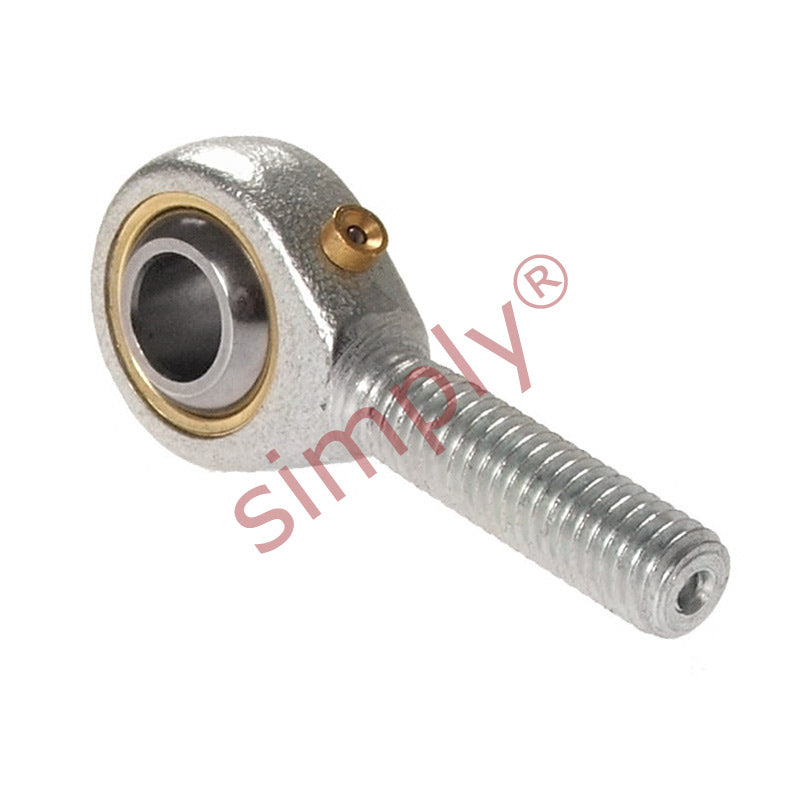

Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

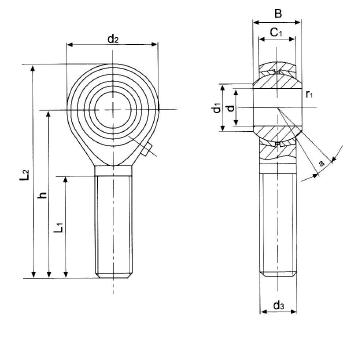

Technical

Bore = 1/2inch
Head Diameter = 1.312 inch
Height = 3.094 inch
Height to Bore Centre = 2.438 inch
Thread Length = 1.500 inch
Thread Size = 0.5000-20UNF
Dynamic Load = 14800N
Static Load = 36300N
