SKU: PHS5L.EU

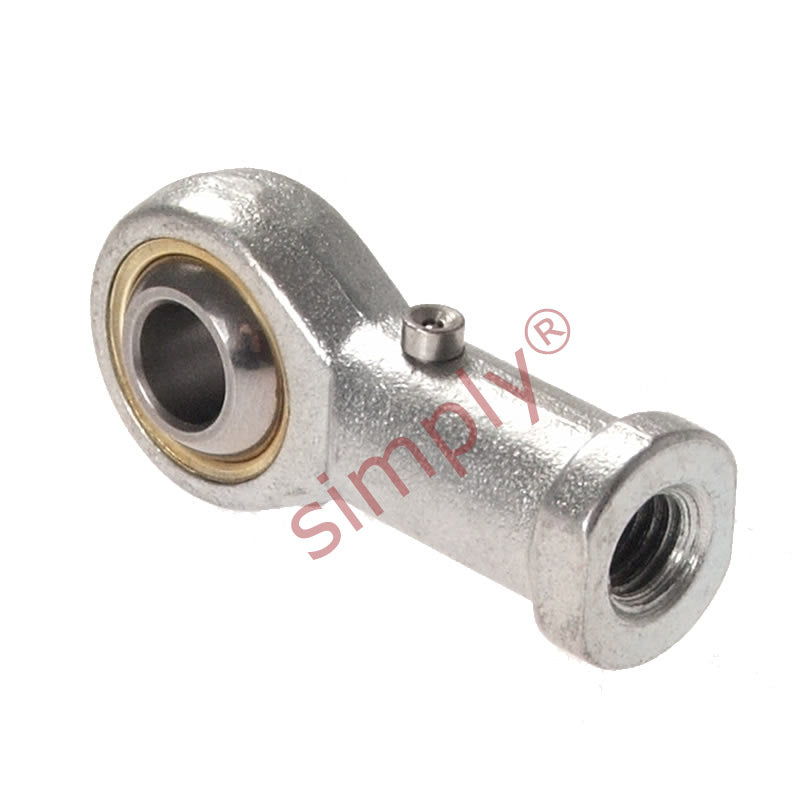

Budget PHS5L Left Hand Steel / Bronze Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
- Regular price
- $7.79 ex VAT
- Sale price
- $7.79
- Regular price
-
In stock
Quantity Price Breaks
10
$6.93
19
$6.54
29
$6.47
39
$6.39
49
$6.31
74
$6.23
99
$5.84
199
$5.76
249
$5.69
499
$5.61
999
$5.45
SKU:
PHS5L.EU
Budget PHS5L Left Hand Steel / Bronze Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
- Regular price
- $7.79 ex VAT
- Sale price
- $7.79
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 5mm |
| B | = | 8mm |
| r1 | = | 0.3mm |
| C1 | = | 6mm |
| d1 max | = | 7.7mm |
| d2 | = | 16mm |
| d3 | = | M5x0.8 |
| h1 | = | 27mm |
| L3 | = | 13mm |
| L4 | = | 35mm |
| L5 | = | 4mm |
| d4 | = | 9mm |
| d5 | = | 11mm |
| S | = | 9mm |
| Ball diameter | = | 7/16 inch |
| Dynamic load Cr | = | 3.3 kN |
| Static load Cor | = | 5.8 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.0165 kg |
