SKU: PHR-5

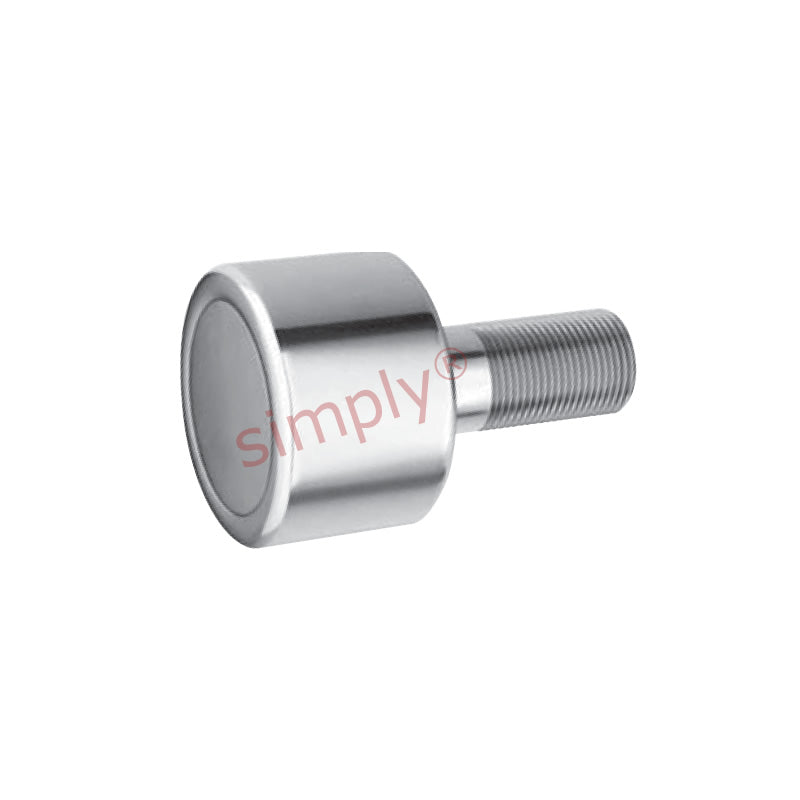

Major Brand PHR5 Hex Head Plain Hi-Roller Bearing 5 inch Outside Diameter
- Regular price
- $1,176.24 ex VAT
- Sale price
- $1,176.24
- Regular price
-
Not in stock
Quantity Price Breaks
3
$1,046.85
4
$988.04
9
$976.28
19
$964.52
29
$952.75
39
$940.99
49
$882.18
59
$870.42
249
$858.66
499
$846.89
999
$823.37
SKU:
PHR-5
Major Brand PHR5 Hex Head Plain Hi-Roller Bearing 5 inch Outside Diameter
- Regular price
- $1,176.24 ex VAT
- Sale price
- $1,176.24
- Regular price
-
Description
|
Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Technical
| A | = | 5 inch |
| B | = | 3 inch |
| C | = | 2 inch |
| D | = | 4.5 inch |
| E | = | 2.5 inch |
| Thread class 2A F | = | 2-12 UN |
| G | = | 2.5 inch |
| S | = | 0.062 inch |
| Basic dynamic rating | = | 33290 lbs |
| Dynamic thrust load rating | = | 32500 lbs |
| Max static capacity | = | 51900 lbs |
