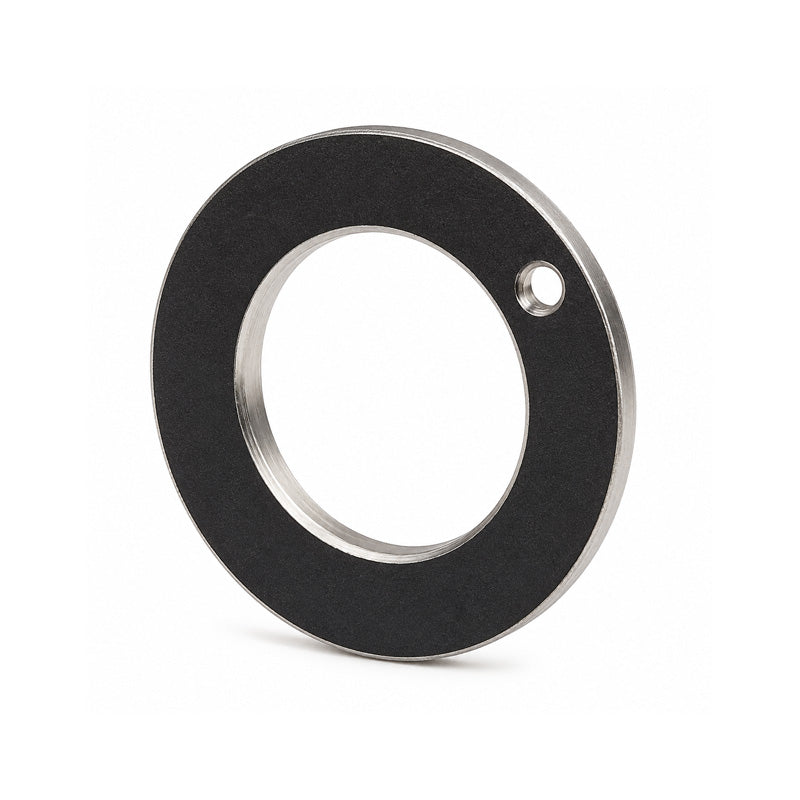

PCMW527802E Metric Thrust Washer 52x78x2mm

SKU: PCMW527802E-SKF

PCMW527802E Metric Thrust Washer 52x78x2mm

$45.22 ex VAT
$45.22
ex VAT
In stock

Quantity Price Breaks

9 $40.25
19 $37.98
29 $37.53
39 $37.08
49 $36.63
69 $36.18
99 $33.92
199 $33.46
249 $33.01
499 $32.56
999 $31.65
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
PCMW527802E Metric Thrust Washer 52x78x2mm
SKU: PCMW527802E-SKF

PCMW527802E Metric Thrust Washer 52x78x2mm

$45.22 ex VAT
$45.22
ex VAT

Description

PCMW-E Thrust Washers: Thrust washers of triple-layer PTFE composite material. Suitable for space-saving axial locating bearing arrangements. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
