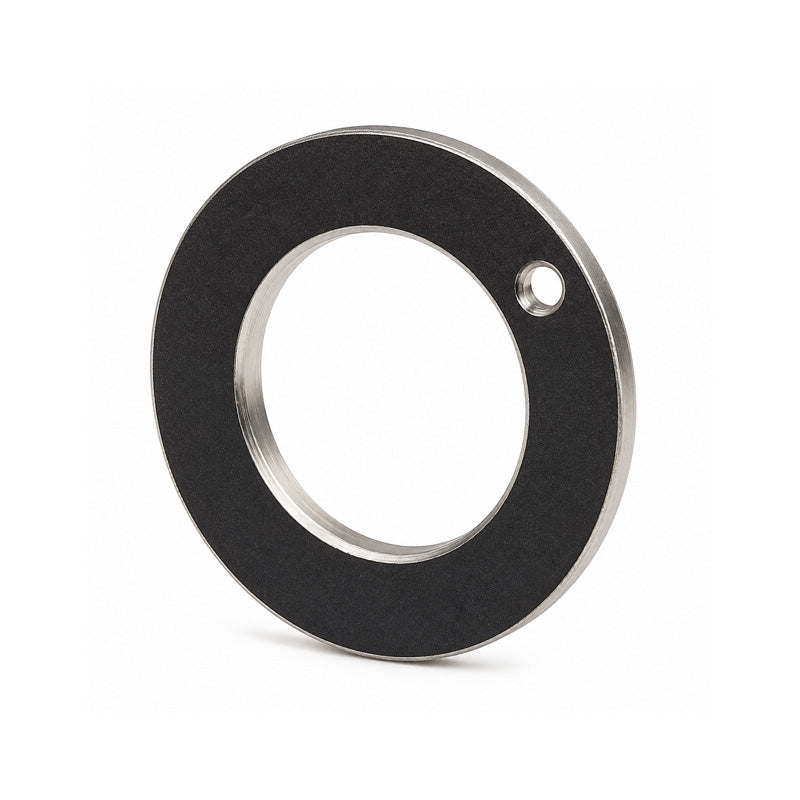

PCMW386201.5E Metric Thrust Washer 38x62x1.5mm

SKU: PCMW386201.5E-SKF

PCMW386201.5E Metric Thrust Washer 38x62x1.5mm

$25.91 ex VAT
$25.91
ex VAT
Not in stock

Quantity Price Breaks

9 $23.06
19 $21.76
29 $21.51
39 $21.25
49 $20.99
69 $20.73
99 $19.43
199 $19.17
249 $18.91
499 $18.66
999 $18.14
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
PCMW386201.5E Metric Thrust Washer 38x62x1.5mm
SKU: PCMW386201.5E-SKF

PCMW386201.5E Metric Thrust Washer 38x62x1.5mm

$25.91 ex VAT
$25.91
ex VAT

Description

PCMW-E Thrust Washers: Thrust washers of triple-layer PTFE composite material. Suitable for space-saving axial locating bearing arrangements. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
