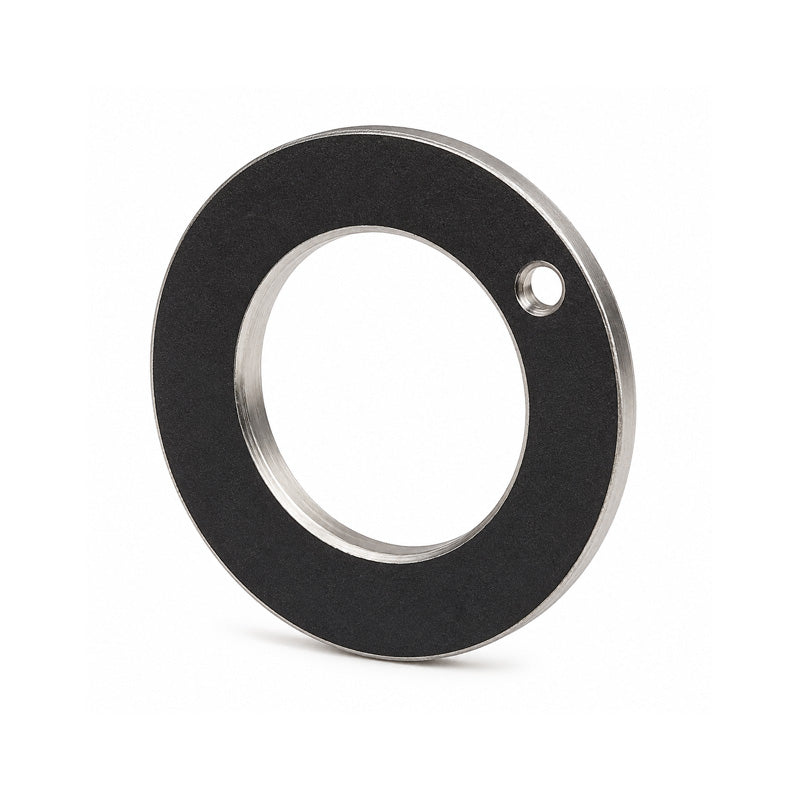

PCMW122401.5E Metric Thrust Washer 12x24x1.5mm

SKU: PCMW122401.5E-SKF

PCMW122401.5E Metric Thrust Washer 12x24x1.5mm

$12.81 ex VAT
$12.81
ex VAT
In stock

Quantity Price Breaks

9 $11.40
19 $10.76
29 $10.63
39 $10.50
49 $10.38
69 $10.25
99 $9.61
199 $9.48
249 $9.35
499 $9.22
999 $8.97
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
PCMW122401.5E Metric Thrust Washer 12x24x1.5mm
SKU: PCMW122401.5E-SKF

PCMW122401.5E Metric Thrust Washer 12x24x1.5mm

$12.81 ex VAT
$12.81
ex VAT

Description

PCMW-E Thrust Washers: Thrust washers of triple-layer PTFE composite material. Suitable for space-saving axial locating bearing arrangements. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
