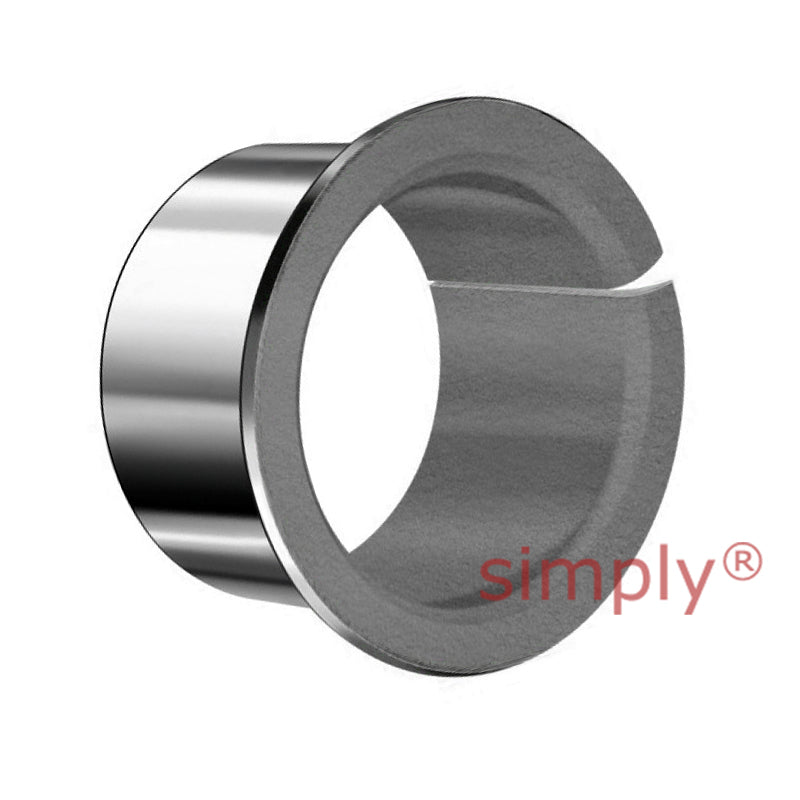

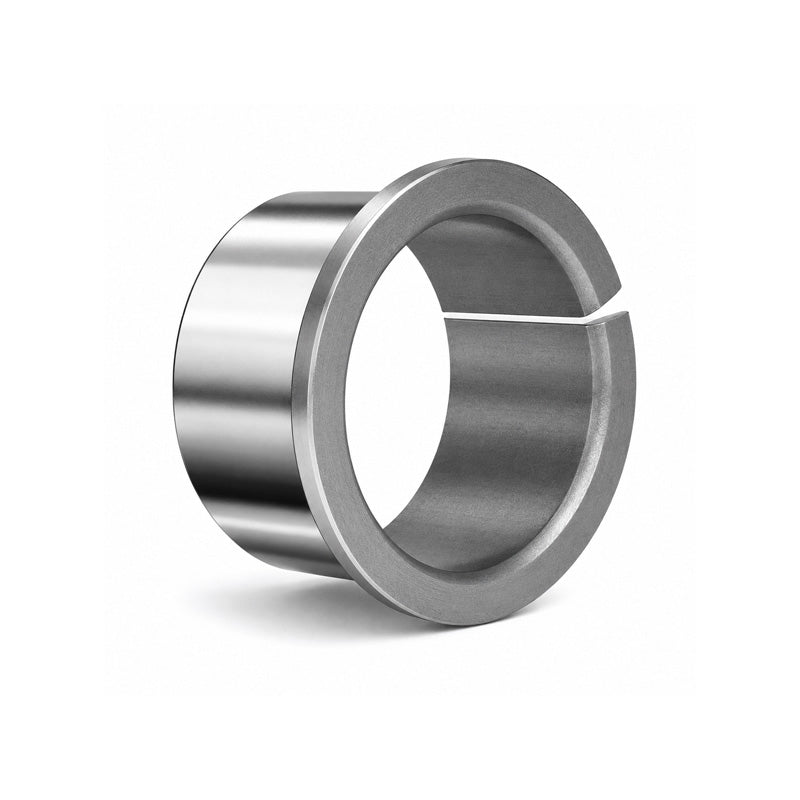

SKF PCMF081007.5E Metric Flanged Bush 8x10x7.5mm

SKU: PCMF081007.5E-SKF

SKF PCMF081007.5E Metric Flanged Bush 8x10x7.5mm

$4.74 ex VAT
$4.74
ex VAT
In stock

Quantity Price Breaks

9 $4.22
19 $3.98
29 $3.93
39 $3.89
49 $3.84
69 $3.79
99 $3.56
199 $3.51
249 $3.46
499 $3.41
999 $3.32
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF PCMF081007.5E Metric Flanged Bush 8x10x7.5mm
SKU: PCMF081007.5E-SKF

SKF PCMF081007.5E Metric Flanged Bush 8x10x7.5mm

$4.74 ex VAT
$4.74
ex VAT

Description

PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
