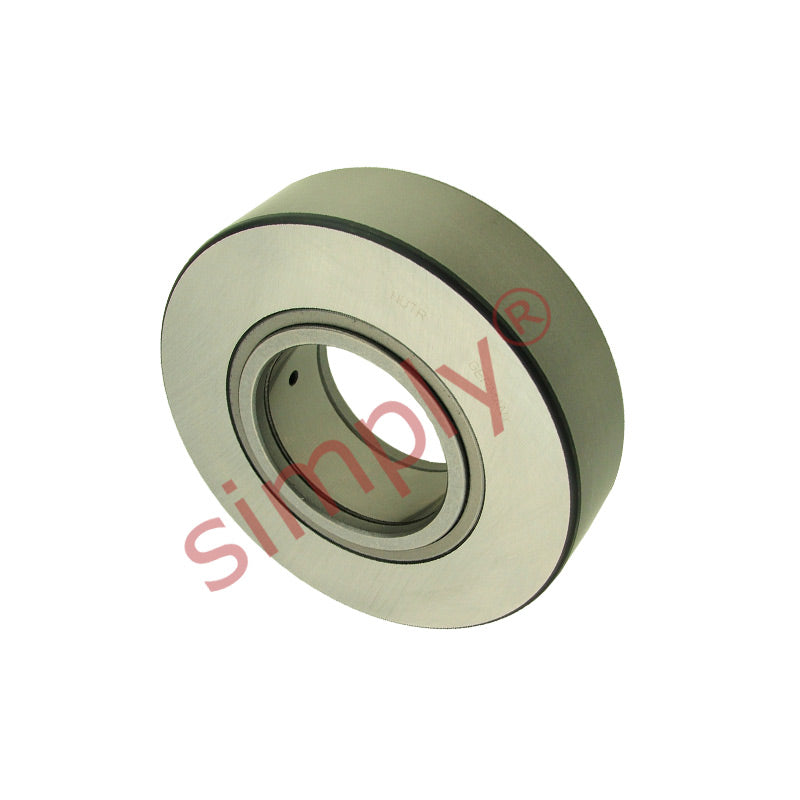

NUTR3580A Budget Support Roller With Axial Guidance Crowned Outer 35x80x29mm

SKU: NUTR3580A-EU

NUTR3580A Budget Support Roller With Axial Guidance Crowned Outer 35x80x29mm

$95.97 ex VAT
$95.97
ex VAT
Not in stock

Quantity Price Breaks

10 $85.41
19 $80.61
29 $79.66
39 $78.70
49 $77.74
74 $76.78
99 $71.98
199 $71.02
249 $70.06
499 $69.10
999 $67.18
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NUTR3580A Budget Support Roller With Axial Guidance Crowned Outer 35x80x29mm
SKU: NUTR3580A-EU

NUTR3580A Budget Support Roller With Axial Guidance Crowned Outer 35x80x29mm

$95.97 ex VAT
$95.97
ex VAT

Description

Budget NUTR Axial Guidance Support Rollers: This type of support roller incorporates a full complement needle roller arrangement and permits high loads. Axial support is provided by two loose flange rings via the roller complement. They are able to accommodate heavy radial and axial loads and relatively high speed operation but will require frequent re-lubrication. For heavy shock load applications the NUTR series with 4 and 5 figure denominations should be used. NUTR rollers have an enhanced roller profile to enable better stress distribution.
Benefits: High speed operation, shock loads, heavy loads, axially guided, better stress distribution

Technical

D = 80mm
d = 35mm
C = 28mm
B = 29mm
d1 = 44mm
r min = 1.1mm
r1 min = 0.6mm
Speed rating = 2100 rpm
Basic dynamic load = 51200 N
Basic static load = 68000 N
Fatigue load limit Pu = 8300 N
Max radial dynamic force = 57000 N
Max radial static force = 81500 N
Weight = 840 g
