SKU: NU338ECM-EU

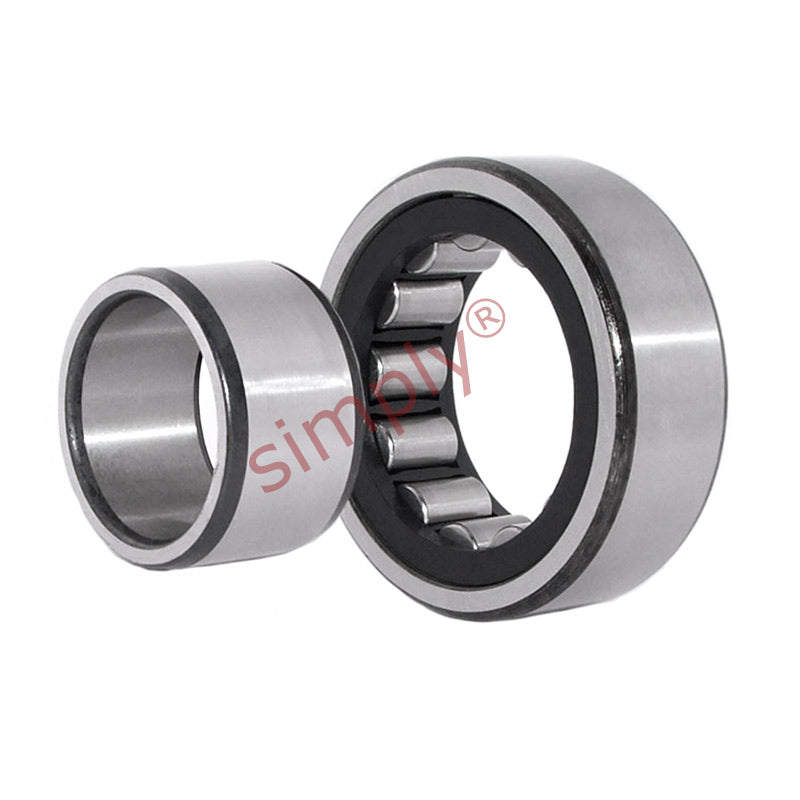

NU338 Budget Single Row Cylindrical Roller Bearing 190x400x78mm
- Regular price
- $5,500.29 ex VAT
- Sale price
- $5,500.29
- Regular price
-
Not in stock
Quantity Price Breaks
10
$4,895.26
19
$4,620.24
29
$4,565.24
39
$4,510.24
49
$4,455.23
74
$4,400.23
99
$4,125.22
199
$4,070.21
249
$4,015.21
499
$3,960.21
999
$3,850.20
SKU:
NU338ECM-EU
NU338 Budget Single Row Cylindrical Roller Bearing 190x400x78mm
- Regular price
- $5,500.29 ex VAT
- Sale price
- $5,500.29
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
Technical
| d | = | 190mm |
| D | = | 400mm |
| B | = | 78mm |
| Dynamic load C | = | 1140 kN |
| Static load Co | = | 1500 kN |
| Fatigue load limit Pu | = | 143 kN |
| Reference speed | = | 1500 rpm |
| Limiting speed | = | 2000 rpm |
| Weight | = | 50 kg |
| d1 | = | 264mm |
| D1 | = | 338mm |
| F, E | = | 245mm |
| r1r2 min | = | 5mm |
| r3r4 min | = | 5mm |
| s | = | 4.3mm |
| da min | = | 210mm |
| da max | = | 240mm |
| db min | = | 249mm |
| Da max | = | 380mm |
| ra max | = | 4mm |
| rb max | = | 4mm |
| kr | = | 0.15 |
| Angle ring | = | HJ338EC |
| Angle ring weight | = | 4.3kg |
| B1 | = | 18mm |
| B2 | = | 29mm |
