SKU: NU312-EU

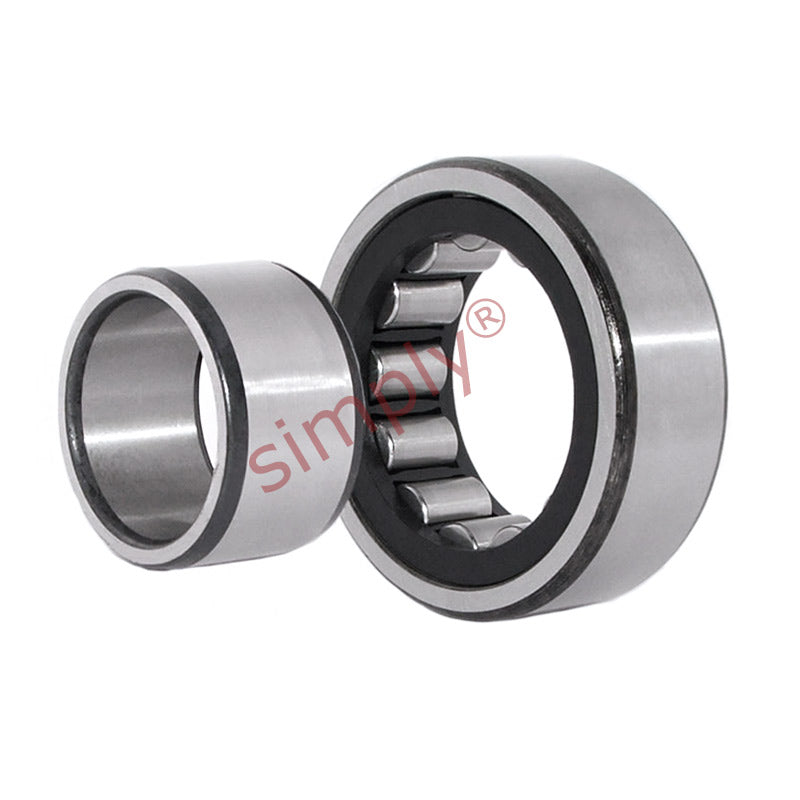

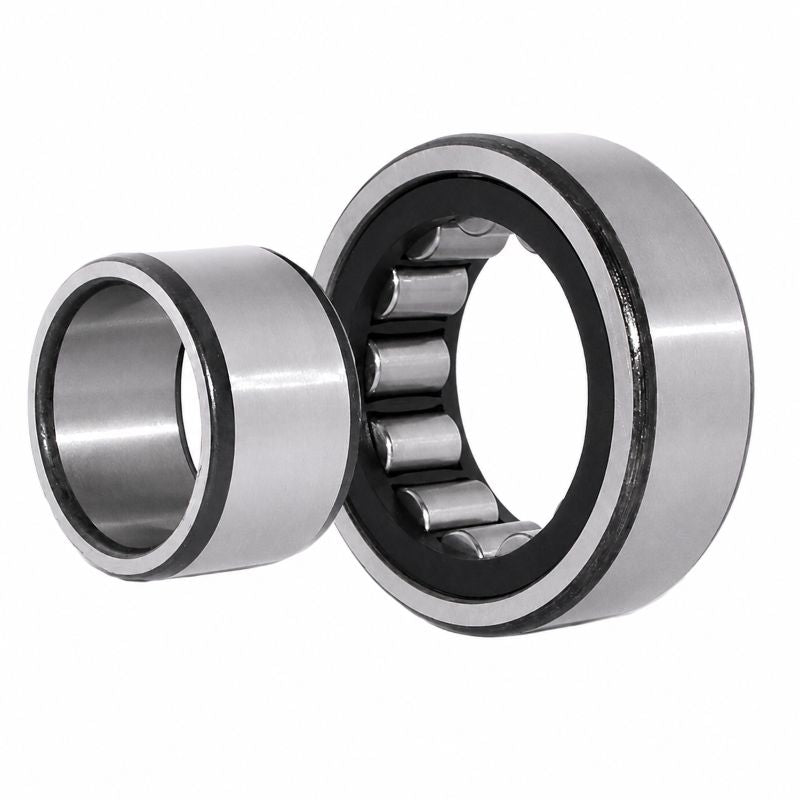

NU312 Budget Single Row Cylindrical Roller Bearing 60x130x31mm
- Regular price
- $140.88 ex VAT
- Sale price
- $140.88
- Regular price
-
In stock
Quantity Price Breaks
10
$125.38
19
$118.34
29
$116.93
39
$115.52
49
$114.11
74
$112.70
99
$105.66
199
$104.25
249
$102.84
499
$101.43
999
$98.62
SKU:
NU312-EU
NU312 Budget Single Row Cylindrical Roller Bearing 60x130x31mm
- Regular price
- $140.88 ex VAT
- Sale price
- $140.88
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
Technical
| d | = | 60mm |
| D | = | 130mm |
| B | = | 31mm |
| Dynamic load C | = | 173 kN |
| Static load Co | = | 160 kN |
| Fatigue load limit Pu | = | 20.8 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 6700 rpm |
| Weight | = | 1.77 kg |
| Cage options | = | J.M.ML |
| d1 | = | 84.3mm |
| D1 | = | 110mm |
| F, E | = | 77mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 2.1mm |
| da min | = | 72mm |
| da max | = | 74mm |
| db min | = | 79mm |
| Da max | = | 118mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
| Angle ring | = | HJ312EC |
| Angle ring weight | = | 0.22kg |
| B1 | = | 9mm |
| B2 | = | 14.5mm |
