SKU: NTA3244-TRA3244

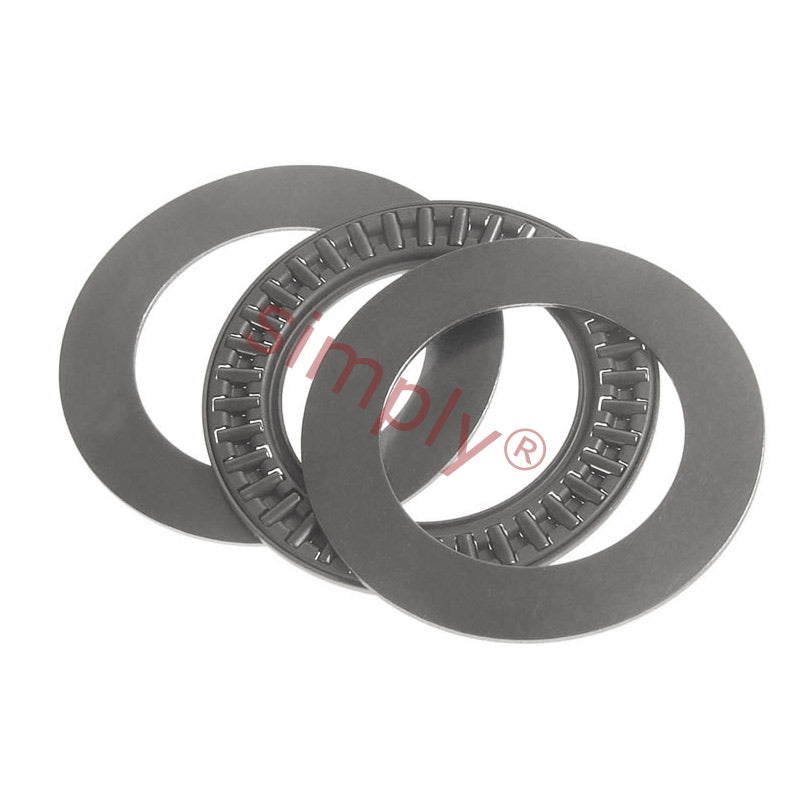

NTA3244 Needle Roller Cage Thrust Assembly with 2 TRA3244 Washers 2x2.75x0.1406 inch
- Regular price
- $16.00 ex VAT
- Sale price
- $16.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
$14.24
19
$13.44
29
$13.28
39
$13.12
49
$12.96
74
$12.80
99
$12.00
199
$11.84
249
$11.68
499
$11.52
999
$11.20
SKU:
NTA3244-TRA3244
NTA3244 Needle Roller Cage Thrust Assembly with 2 TRA3244 Washers 2x2.75x0.1406 inch
- Regular price
- $16.00 ex VAT
- Sale price
- $16.00
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 2 inch |
| D | = | 2.75 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 2.09 inch |
| dw | = | 2.57 inch |
| Dynamic load | = | 24.02 kN |
| Static load | = | 132.56 kN |
| Limiting speed | = | 6100 rpm |
| Weight | = | 0.014982 kg |
| Washer | = | Dimensions |
| d | = | 2.000 inch |
| d1 | = | 2.75 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 1.997 inch |
| Pilot max | = | 2.000 inch |
| Dia to clear washer | = | 2.781 inch |
| Weight | = | 0.024 lbs |
