SKU: NTA2840-TRA2840

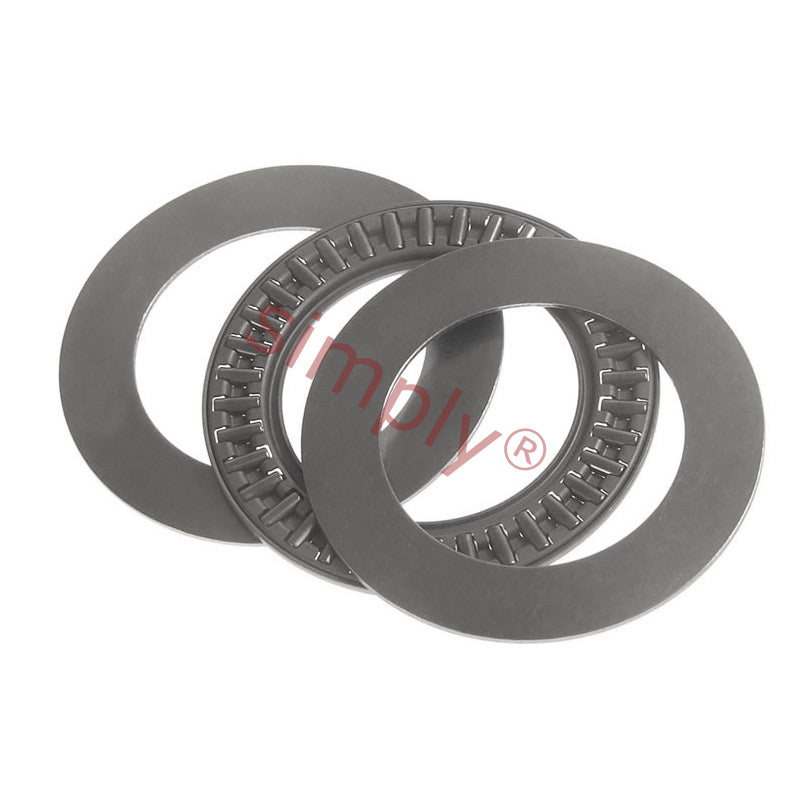

NTA2840 Needle Roller Cage Thrust Assembly with 2 TRA2840 Washers 1.75x2.5x0.1406 inch
- Regular price
- $13.33 ex VAT
- Sale price
- $13.33
- Regular price
-
Not in stock
Quantity Price Breaks
10
$11.86
19
$11.20
29
$11.06
39
$10.93
49
$10.80
74
$10.66
99
$10.00
199
$9.86
249
$9.73
499
$9.60
999
$9.33
SKU:
NTA2840-TRA2840
NTA2840 Needle Roller Cage Thrust Assembly with 2 TRA2840 Washers 1.75x2.5x0.1406 inch
- Regular price
- $13.33 ex VAT
- Sale price
- $13.33
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 1.75 inch |
| D | = | 2.5 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 1.84 inch |
| dw | = | 2.32 inch |
| Dynamic load | = | 25.31 kN |
| Static load | = | 137.45 kN |
| Limiting speed | = | 6800 rpm |
| Weight | = | 0.014074 kg |
| Washer | = | Dimensions |
| d | = | 1.750 inch |
| d1 | = | 2.5 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 1.747 inch |
| Pilot max | = | 1.750 inch |
| Dia to clear washer | = | 2.531 inch |
| Weight | = | 0.021 lbs |
