SKU: NTA1220-TRA1220

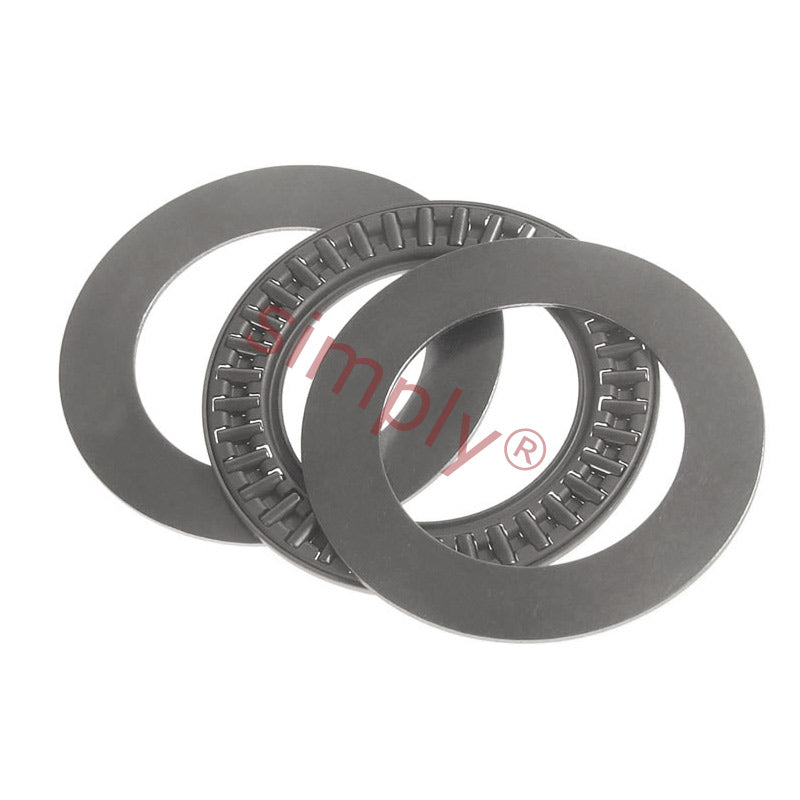

NTA1220 Needle Roller Cage Thrust Assembly with 2 TRA1220 Washers 0.75x1.25x0.1406 inch
- Regular price
- $13.12 ex VAT
- Sale price
- $13.12
- Regular price
-
Not in stock
Quantity Price Breaks
10
$11.68
19
$11.02
29
$10.89
39
$10.76
49
$10.63
74
$10.50
99
$9.84
199
$9.71
249
$9.58
499
$9.45
999
$9.18
SKU:
NTA1220-TRA1220
NTA1220 Needle Roller Cage Thrust Assembly with 2 TRA1220 Washers 0.75x1.25x0.1406 inch
- Regular price
- $13.12 ex VAT
- Sale price
- $13.12
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 0.75 inch |
| D | = | 1.25 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 0.84 inch |
| dw | = | 1.14 inch |
| Dynamic load | = | 10.90 kN |
| Static load | = | 36.48 kN |
| Limiting speed | = | 14000 rpm |
| Weight | = | 0.004086 kg |
| Washer | = | Dimensions |
| d | = | 0.750 inch |
| d1 | = | 1.25 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 0.747 inch |
| Pilot max | = | 0.750 inch |
| Dia to clear washer | = | 1.281 inch |
| Weight | = | 0.007 lbs |
