SKU: NKXR50-EU
NKXR50 Budget Needle Roller Thrust Bearing without Cover 50x62x35mm
- Regular price
- $168.13 ex VAT
- Sale price
- $168.13
- Regular price
-
Not in stock
Quantity Price Breaks
10
$149.64
19
$141.23
29
$139.55
39
$137.87
49
$136.19
74
$134.50
99
$126.10
199
$124.42
249
$122.73
499
$121.05
999
$117.69
SKU:
NKXR50-EU

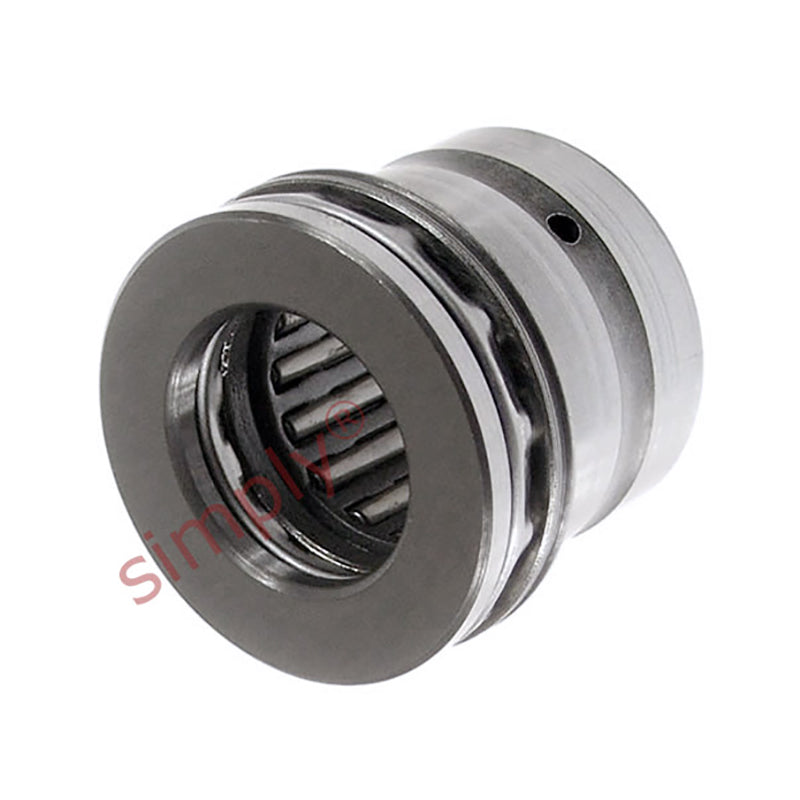

NKXR50 Budget Needle Roller Thrust Bearing without Cover 50x62x35mm
- Regular price
- $168.13 ex VAT
- Sale price
- $168.13
- Regular price
-
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |

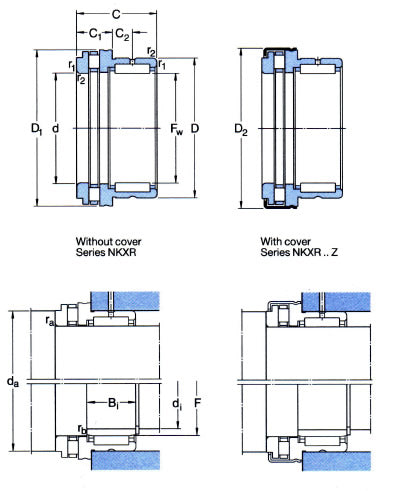

Technical
| Fw | = | 50mm |
| D | = | 62mm |
| C | = | 35mm |
| Dynamic load | = | 38000 N |
| Static load | = | 80000 N |
| Axial dynamic load | = | 47500 N |
| Axial static load | = | 166000 N |
| Fatigue load limit radial Pu | = | 9650 N |
| Fatigue load limit axial Pu | = | 16600 N |
| Min load factor A | = | 2.2 |
| Speed in grease | = | 1600 rpm |
| Speed in oil | = | 2200 rpm |
| C1 | = | 14mm |
| C2 | = | 10mm |
| d | = | 50mm |
| D1 | = | 70mm |
| r1r2 min | = | 0.6mm |
| da | = | 65.6mm |
| ra max | = | 0.6mm |
| rb max | = | 0.3mm |
| di | = | 45mm |
| F | = | 50mm |
| B1 | = | 25mm |
| Inner ring | = | IR45x50x25 |
| Weight | = | 270 g |
