SKU: NK75/35-EU
NK75/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 75x92x35mm
- Regular price
- $124.29 ex VAT
- Sale price
- $124.29
- Regular price
-
Not in stock
Quantity Price Breaks
10
$110.62
19
$104.40
29
$103.16
39
$101.92
49
$100.67
74
$99.43
99
$93.22
199
$91.97
249
$90.73
499
$89.49
999
$87.00
SKU:
NK75/35-EU
NK75/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 75x92x35mm
- Regular price
- $124.29 ex VAT
- Sale price
- $124.29
- Regular price
-
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical

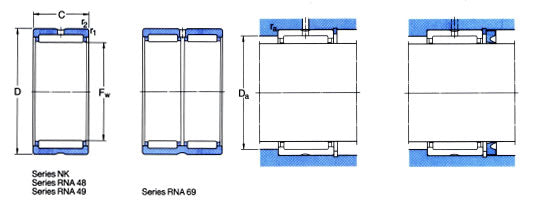

| Fw | = | 75mm |
| D | = | 92mm |
| C | = | 35mm |
| Dynamic load C | = | 74800 N |
| Static load Co | = | 170000 N |
| Fatigue load limit Pu | = | 22000 N |
| Speed in grease | = | 3800 rpm |
| Speed in oil | = | 5300 rpm |
| r1r2 | = | 1mm |
| Da max | = | 87mm |
| ra max | = | 1mm |
| Weight | = | 450 g |
