SKU: NK5/10TN-EU

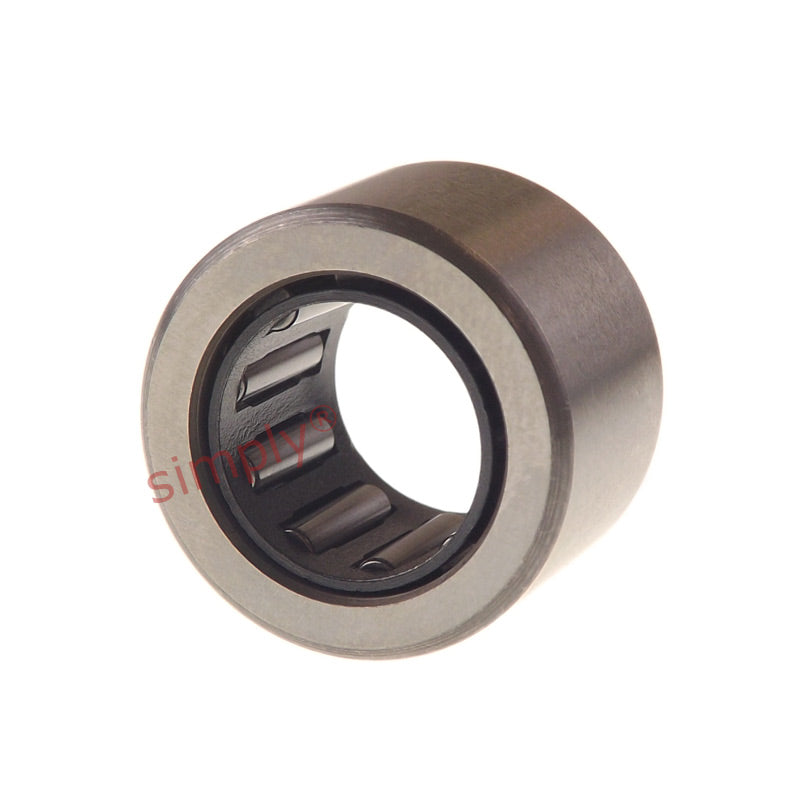

NK5/10TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 5x10x10mm
- Regular price
- $12.13 ex VAT
- Sale price
- $12.13
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
$10.80
19
$10.19
29
$10.07
39
$9.95
49
$9.83
74
$9.70
99
$9.10
199
$8.98
249
$8.85
499
$8.73
999
$8.49
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 5mm |
| D | = | 10mm |
| C | = | 10mm |
| Dynamic load C | = | 2290 N |
| Static load Co | = | 2000 N |
| Fatigue load limit Pu | = | 212 N |
| Speed in grease | = | 36000 rpm |
| Speed in oil | = | 50000 rpm |
| r1r2 | = | 0.15mm |
| Da max | = | 8.8mm |
| ra max | = | 0.1mm |
| Seal | = | G5x10x2 |
| Weight | = | 3.1 g |
