SKU: NJ305-CDX

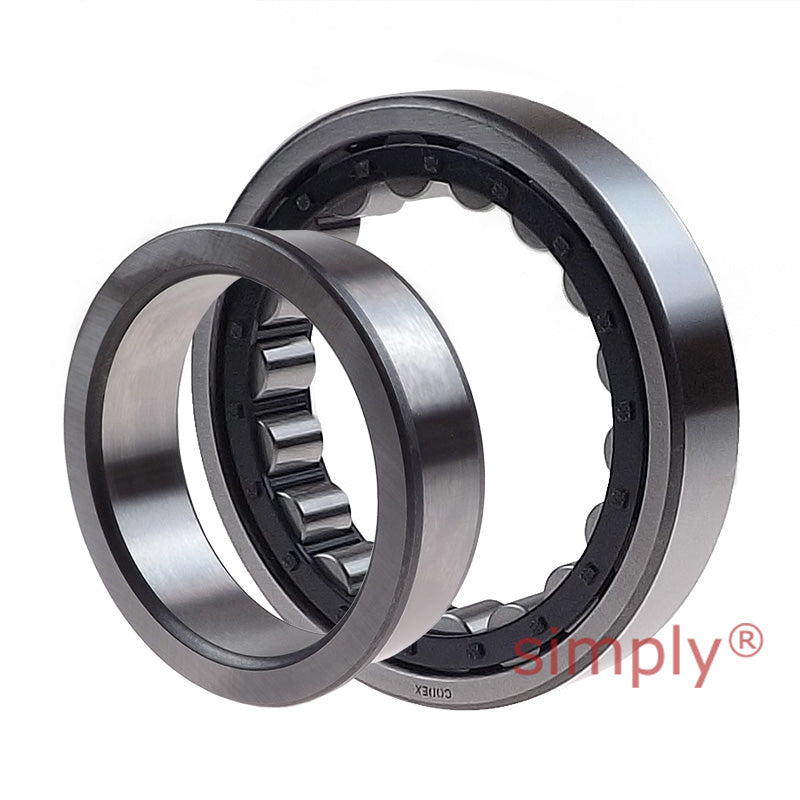

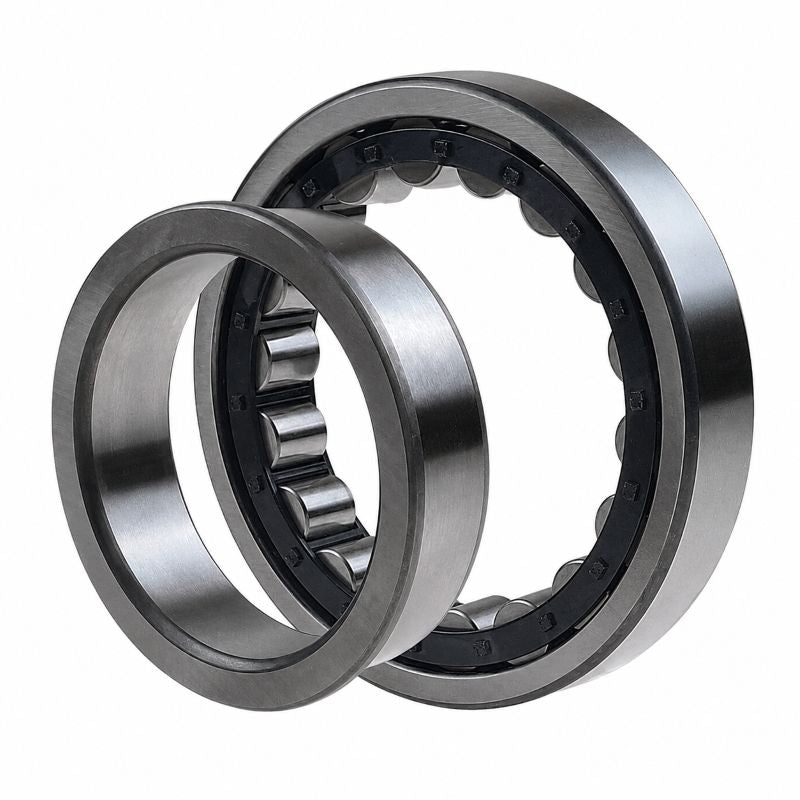

Codex NJ305 Single Row Cylindrical Roller Bearing 25x62x17mm
- Regular price
- $48.73 ex VAT
- Sale price
- $48.73
- Regular price
-
In stock
Quantity Price Breaks
10
$43.37
19
$40.93
29
$40.45
39
$39.96
49
$39.47
74
$38.98
99
$36.55
199
$36.06
249
$35.57
499
$35.09
999
$34.11
SKU:
NJ305-CDX
Codex NJ305 Single Row Cylindrical Roller Bearing 25x62x17mm
- Regular price
- $48.73 ex VAT
- Sale price
- $48.73
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 25mm |
| D | = | 62mm |
| B | = | 17mm |
| Dynamic load C | = | 46.5 kN |
| Static load Co | = | 36.5 kN |
| Fatigue load limit Pu | = | 4.55 kN |
| Reference speed | = | 12000 rpm |
| Limiting speed | = | 15000 rpm |
| Weight | = | 0.24 kg |
| Cage options | = | J.ML |
| d1 | = | 38.1mm |
| D1 | = | 50.7mm |
| F, E | = | 34mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| s | = | 1.3mm |
| da min | = | 32mm |
| da max | = | 32mm |
| db min | = | 40mm |
| Da max | = | 55mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.15 |
| Angle ring | = | HJ305EC |
| Angle ring weight | = | 0.023kg |
| B1 | = | 4mm |
| B2 | = | 7mm |
