SKU: NCL.4864.V.MB

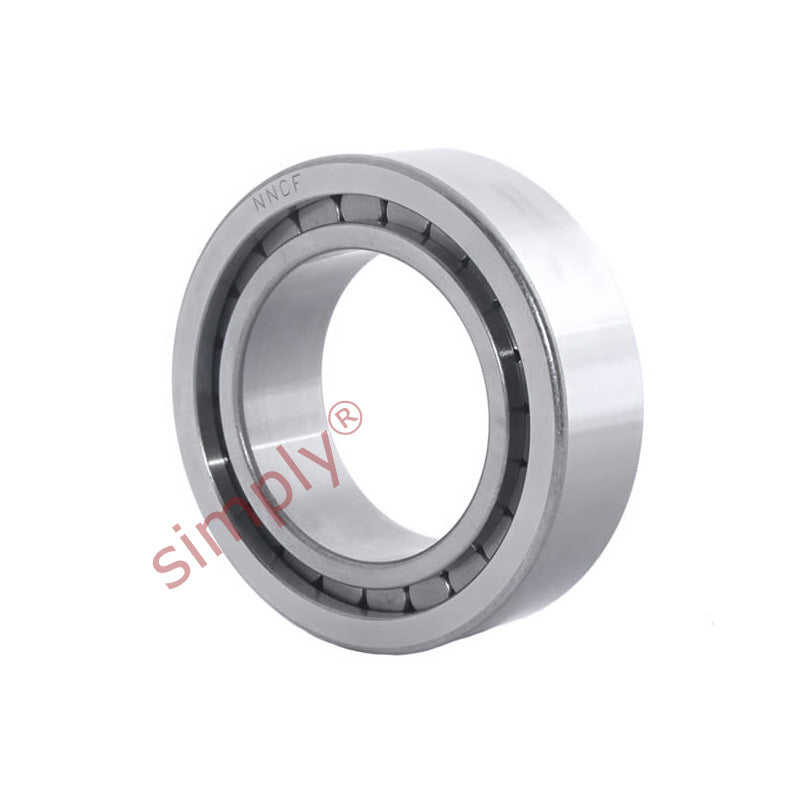

NNCL4864V Double Row Cylindrical Roller Bearing 320x400x80mm
- Regular price
- $7,113.13 ex VAT
- Sale price
- $7,113.13
- Regular price
-
Not in stock
Quantity Price Breaks
10
$6,330.69
19
$5,975.03
29
$5,903.90
39
$5,832.77
49
$5,761.64
74
$5,690.50
99
$5,334.85
199
$5,263.72
249
$5,192.58
499
$5,121.45
999
$4,979.19
SKU:
NCL.4864.V.MB
NNCL4864V Double Row Cylindrical Roller Bearing 320x400x80mm
- Regular price
- $7,113.13 ex VAT
- Sale price
- $7,113.13
- Regular price
-
Description
|
NNCL Series Double Row Full Complement Cylindrical Roller Bearings: Have three integral flanges on the inner ring a flange less outer ring, A retaining ring is fitted between the rollers in the outer ring keeping the assembly together. Axial displacement of the shaft relative to the housing can be accommodated in both directions within the bearing. The bearings are therefore suited to none located bearing positions Benefits: None separable construction, suited to none located installations |
Technical
| d | = | 320mm |
| D | = | 400mm |
| B | = | 80mm |
| Weight | = | 23.5kg |
