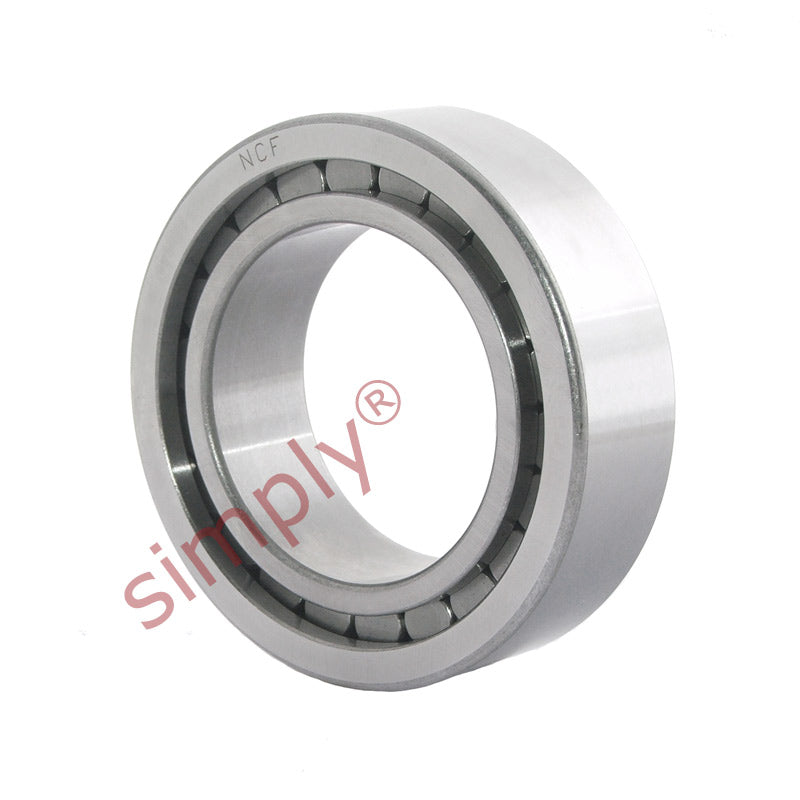

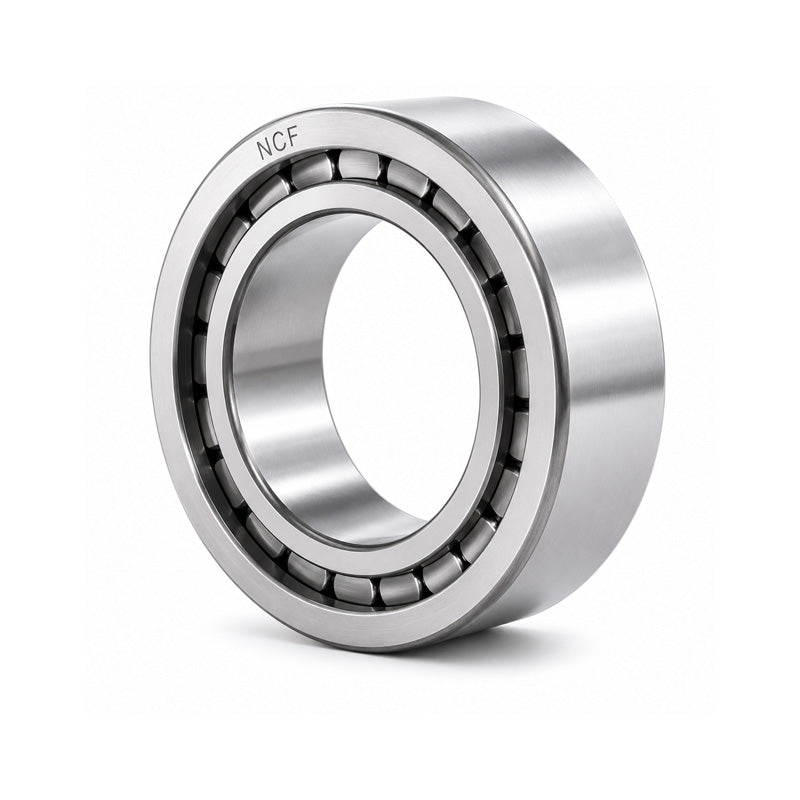

NCF3052VC3 Full Complement Cylindrical Roller Bearing 260x400x104mm

SKU: NCF.3052.VC3.MB

NCF3052VC3 Full Complement Cylindrical Roller Bearing 260x400x104mm

$7,626.94 ex VAT
$7,626.94
ex VAT
Equivalent to: SL18 3052C3 NCF 3052 CV.C3
Not in stock

Quantity Price Breaks

10 $6,787.98
19 $6,406.63
29 $6,330.36
39 $6,254.09
49 $6,177.82
74 $6,101.55
99 $5,720.21
199 $5,643.94
249 $5,567.67
499 $5,491.40
999 $5,338.86
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NCF3052VC3 Full Complement Cylindrical Roller Bearing 260x400x104mm
SKU: NCF.3052.VC3.MB

NCF3052VC3 Full Complement Cylindrical Roller Bearing 260x400x104mm

$7,626.94 ex VAT
$7,626.94
ex VAT

Description

NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing
Benefits:Tolerate axial load in one direction, none separable construction

Technical

d = 260mm
D = 400mm
B = 104mm
Weight = 48.7kg
