SKU: NCF.2234.V.MB

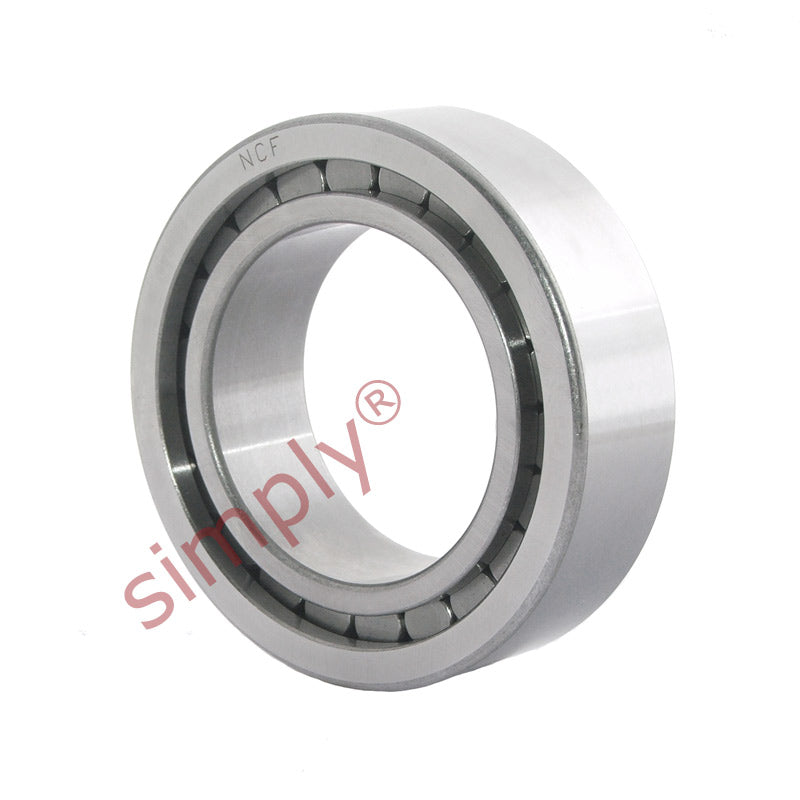

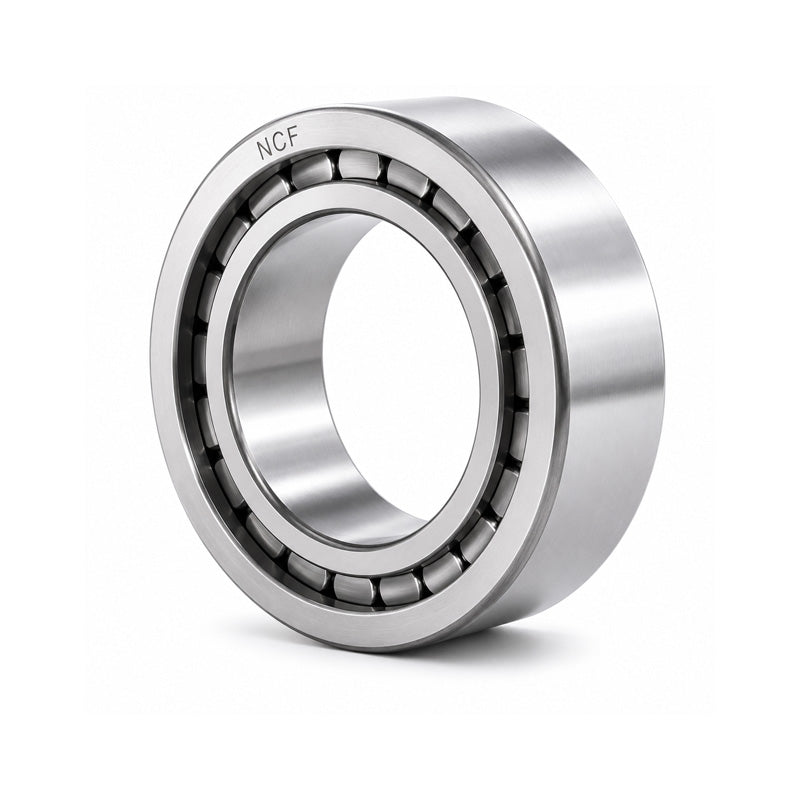

NCF2234V Full Complement Cylindrical Roller Bearing 170x310x86mm
- Regular price
- $4,574.15 ex VAT
- Sale price
- $4,574.15
- Regular price
-
Not in stock
Quantity Price Breaks
10
$4,070.99
19
$3,842.29
29
$3,796.54
39
$3,750.80
49
$3,705.06
74
$3,659.32
99
$3,430.61
199
$3,384.87
249
$3,339.13
499
$3,293.39
999
$3,201.91
SKU:
NCF.2234.V.MB
NCF2234V Full Complement Cylindrical Roller Bearing 170x310x86mm
- Regular price
- $4,574.15 ex VAT
- Sale price
- $4,574.15
- Regular price
-
Description
|
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing Benefits:Tolerate axial load in one direction, none separable construction |
Technical
| d | = | 170mm |
| D | = | 310mm |
| B | = | 86mm |
| Weight | = | 28.65kg |
