SKU: NAO35x50x17-MB

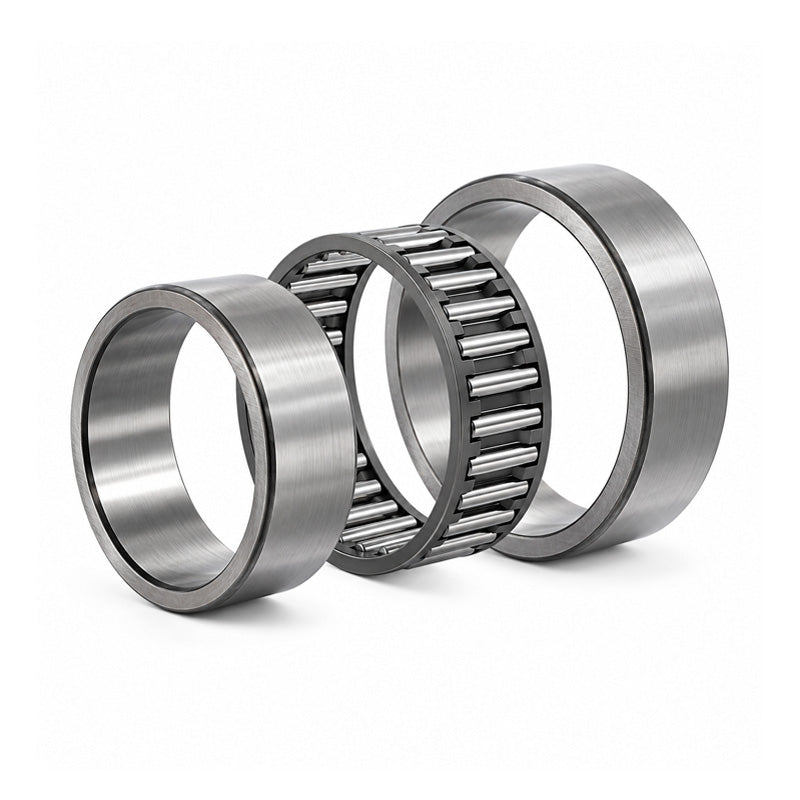

Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring
- Regular price
- $52.49 ex VAT
- Sale price
- $52.49
- Regular price
-
In stock
Quantity Price Breaks
10
$46.72
19
$44.09
29
$43.57
39
$43.04
49
$42.52
74
$41.99
99
$39.37
199
$38.84
249
$38.32
499
$37.79
999
$36.74
SKU:
NAO35x50x17-MB
Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring
- Regular price
- $52.49 ex VAT
- Sale price
- $52.49
- Regular price
-
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
Technical
| d | = | 35mm |
| D | = | 50mm |
| B | = | 17mm |
| Dynamic load | = | 20500 N |
| Static load | = | 41500 N |
| Fatigue load limit Pu | = | 5000 N |
| Speed in grease | = | 7000 rpm |
| Speed in oil | = | 10000 rpm |
| E | = | 45mm |
| F | = | 40mm |
| r1r2 min | = | 0.3mm |
| S (axial disp) | = | 0.8mm |
| da | = | 44.4mm |
| db | = | 39.5mm |
| Da | = | 45.5mm |
| Db | = | 40.6mm |
| ra max | = | 0.3mm |
| Weight | = | 110 g |
