SKU: NAO30x47x16-EU
NAO30x47x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- $38.38 ex VAT
- Sale price
- $38.38
- Regular price
-
In stock
Quantity Price Breaks
10
$34.16
19
$32.24
29
$31.86
39
$31.47
49
$31.09
74
$30.70
99
$28.79
199
$28.40
249
$28.02
499
$27.63
999
$26.87
SKU:
NAO30x47x16-EU
NAO30x47x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- $38.38 ex VAT
- Sale price
- $38.38
- Regular price
-
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |

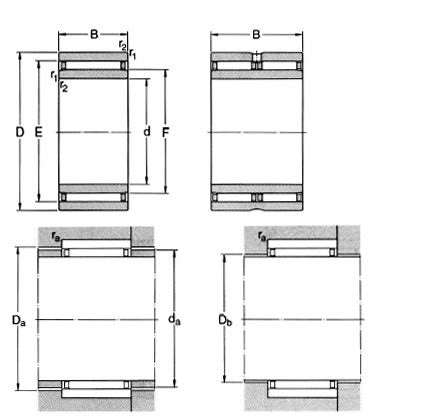

Technical
| d | = | 30mm |
| D | = | 47mm |
| B | = | 16mm |
| Dynamic load C | = | 23300 N |
| Static load Co | = | 37500 N |
| Fatigue load limit Pu | = | 4500 N |
| Speed in grease | = | 7500 rpm |
| Speed in oil | = | 11000 rpm |
| E | = | 42mm |
| F | = | 35mm |
| r1r2 min | = | 0.3mm |
| S (axial disp) | = | 0.8mm |
| da | = | 41.4mm |
| db | = | 34.5mm |
| Da | = | 42.5mm |
| Db | = | 35.6mm |
| ra max | = | 0.3mm |
| Weight | = | 110 g |
