SKU: NAO15x28x13-EU

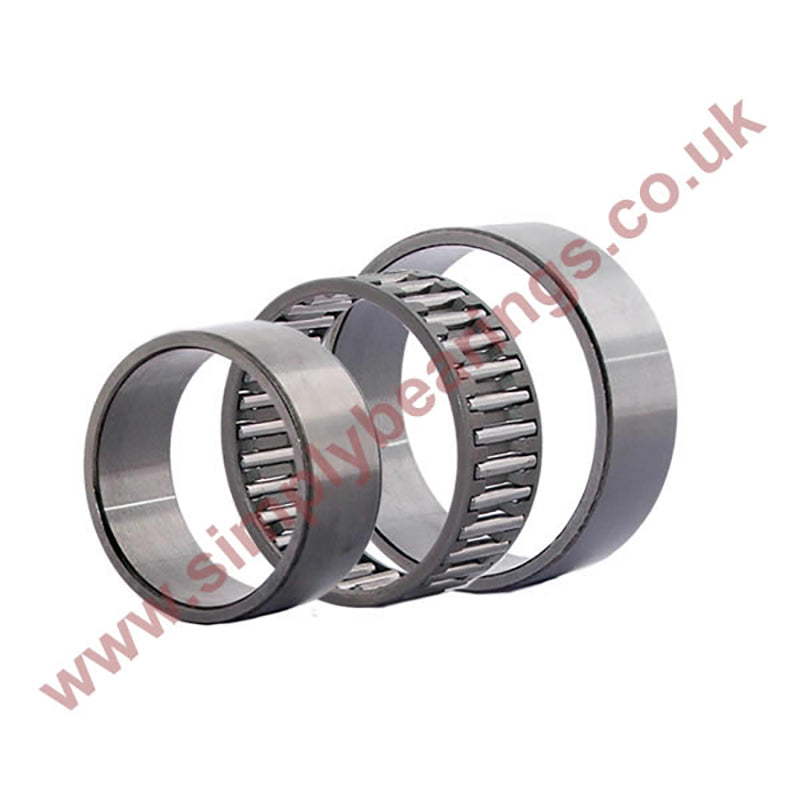

NAO15x28x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- $20.86 ex VAT
- Sale price
- $20.86
- Regular price
-
In stock
Quantity Price Breaks
10
$18.57
19
$17.52
29
$17.31
39
$17.11
49
$16.90
74
$16.69
99
$15.65
199
$15.44
249
$15.23
499
$15.02
999
$14.60
SKU:
NAO15x28x13-EU
NAO15x28x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- $20.86 ex VAT
- Sale price
- $20.86
- Regular price
-
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
Technical
| d | = | 15mm |
| D | = | 28mm |
| B | = | 13mm |
| Dynamic load C | = | 9520 N |
| Static load Co | = | 14600 N |
| Fatigue load limit Pu | = | 1660 N |
| Speed in grease | = | 14000 rpm |
| Speed in oil | = | 20000 rpm |
| E | = | 24mm |
| F | = | 20mm |
| r1r2 min | = | 0.3mm |
| S (axial disp) | = | 0.5mm |
| da | = | 23.6mm |
| db | = | 19.5mm |
| Da | = | 24.3mm |
| Db | = | 20.4mm |
| ra max | = | 0.3mm |
| Weight | = | 29 g |
