SKU: MSC85-RHP

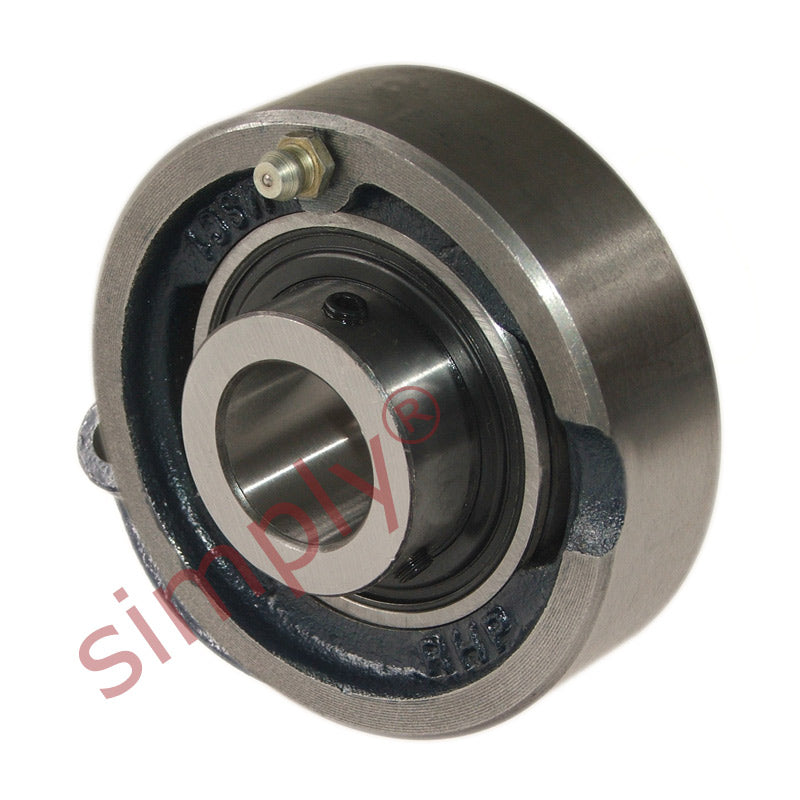

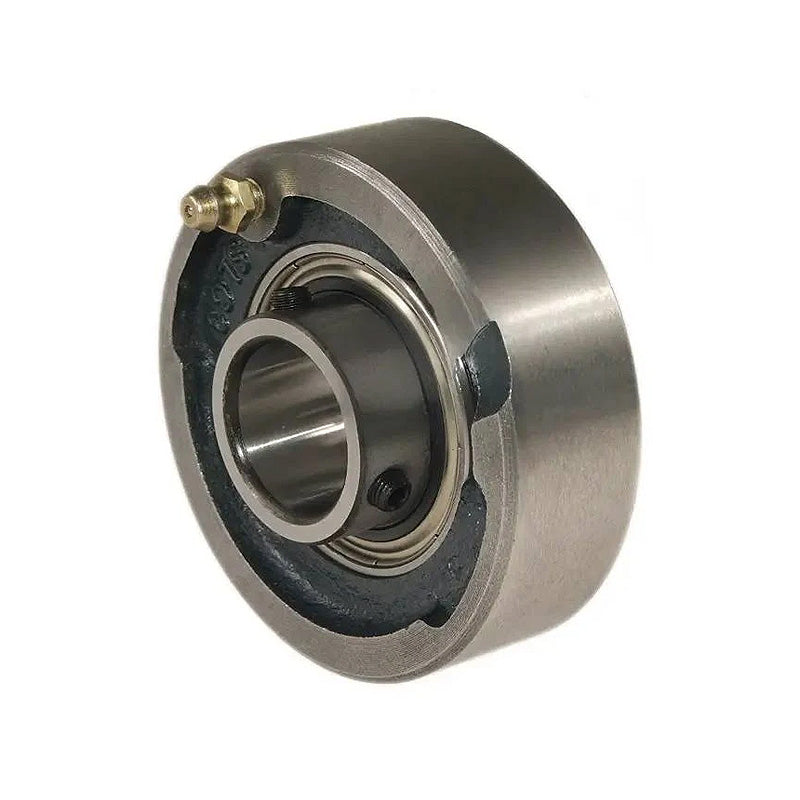

RHP MSC85 Cast Iron Cartridge Unit with 85mm Bore Insert 188.94mm Outside Diameter
- Regular price
- $879.62 ex VAT
- Sale price
- $879.62
- Regular price
-
Not in stock
Quantity Price Breaks
10
$782.86
20
$738.88
30
$730.08
40
$721.29
50
$712.49
75
$703.70
100
$659.72
200
$650.92
250
$642.12
500
$633.33
1000
$615.73
SKU:
MSC85-RHP
RHP MSC85 Cast Iron Cartridge Unit with 85mm Bore Insert 188.94mm Outside Diameter
- Regular price
- $879.62 ex VAT
- Sale price
- $879.62
- Regular price
-
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

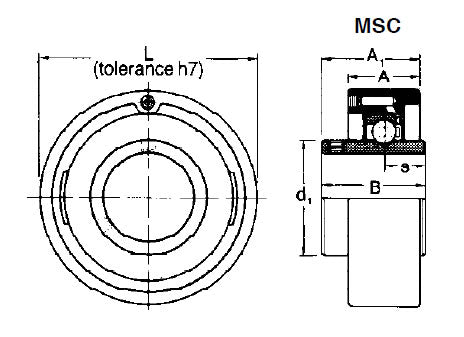

Technical
| Bore | = | 85mm |
| L | = | 188.937mm |
| A | = | 63.5mm |
| A1 | = | 83.29mm |
| B | = | 85.72mm |
| s | = | 34.18mm |
| d1 | = | 106.02 |
| Dynamic load Cr | = | 83000 N |
| Static load Cor | = | 64000 N |
| Rex max speed | = | 2000 rpm |
| Weight | = | 9.3 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1085-85G+insonly" |
| > | = | 1085-85G Click Here< |
| /a> | = | |
| Casting group | = | 11 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
