SKU: MFC70-RHP

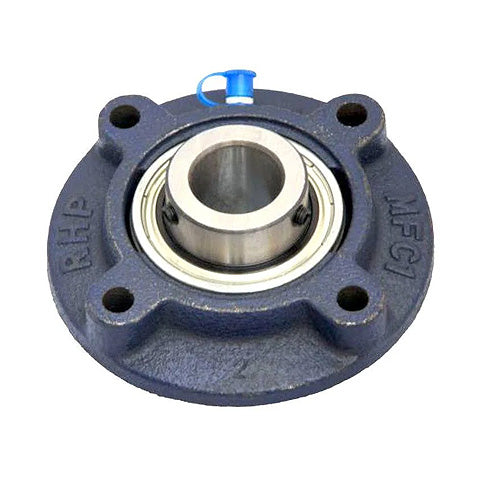

RHP MFC70 Four Bolt Round Cast Iron Flanged Bearing Unit and 70mm Insert
- Regular price
- $465.69 ex VAT
- Sale price
- $465.69
- Regular price
-
In stock
Quantity Price Breaks
10+
$414.46
19+
$391.18
29+
$386.52
39+
$381.87
49+
$377.21
74+
$372.55
99+
$349.27
199+
$344.61
249+
$339.95
499+
$335.30
999+
$325.98
SKU:
MFC70-RHP
RHP MFC70 Four Bolt Round Cast Iron Flanged Bearing Unit and 70mm Insert
- Regular price
- $465.69 ex VAT
- Sale price
- $465.69
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 70mm |
| L | = | 222.2mm |
| H | = | 161.92mm |
| J | = | 190.5mm |
| G | = | 16mm |
| A1 | = | 50.8mm |
| A4 | = | 21mm |
| A5 | = | 12.7mm |
| B | = | 77.77mm |
| s | = | 33.37mm |
| d1 | = | 92mm |
| Dynamic load | = | 66000 N |
| Static load | = | 49500 N |
| Rec max speed | = | 2300 rpm |
| Weight | = | 5.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1075-70G+insonly" |
| > | = | 1075-70G Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
