SKU: MFC55-RHP

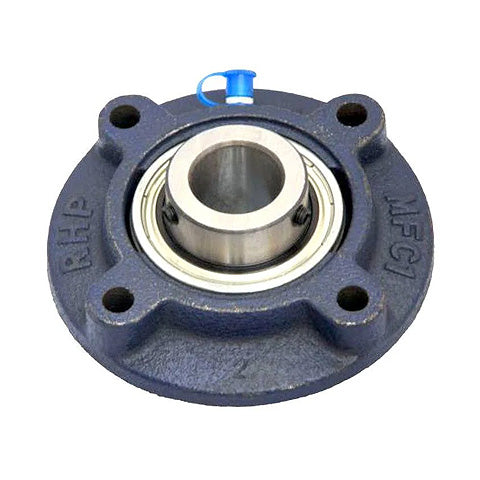

RHP MFC55 Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
- Regular price
- $288.48 ex VAT
- Sale price
- $288.48
- Regular price
-
In stock
Quantity Price Breaks
10+
$256.75
19+
$242.32
29+
$239.44
39+
$236.55
49+
$233.67
74+
$230.78
99+
$216.36
199+
$213.48
249+
$210.59
499+
$207.71
999+
$201.94
SKU:
MFC55-RHP
RHP MFC55 Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
- Regular price
- $288.48 ex VAT
- Sale price
- $288.48
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 55mm |
| L | = | 181mm |
| H | = | 127mm |
| J | = | 152.4mm |
| G | = | 12mm |
| A1 | = | 42.85mm |
| A4 | = | 15.9mm |
| A5 | = | 9.5mm |
| B | = | 65.07mm |
| s | = | 25.45mm |
| d1 | = | 75.34mm |
| Dynamic load | = | 48000 N |
| Static load | = | 33000 N |
| Rec max speed | = | 2800 rpm |
| Weight | = | 3.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1060-55G+insonly" |
| > | = | 1060-55G Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
