SKU: MB14-MB

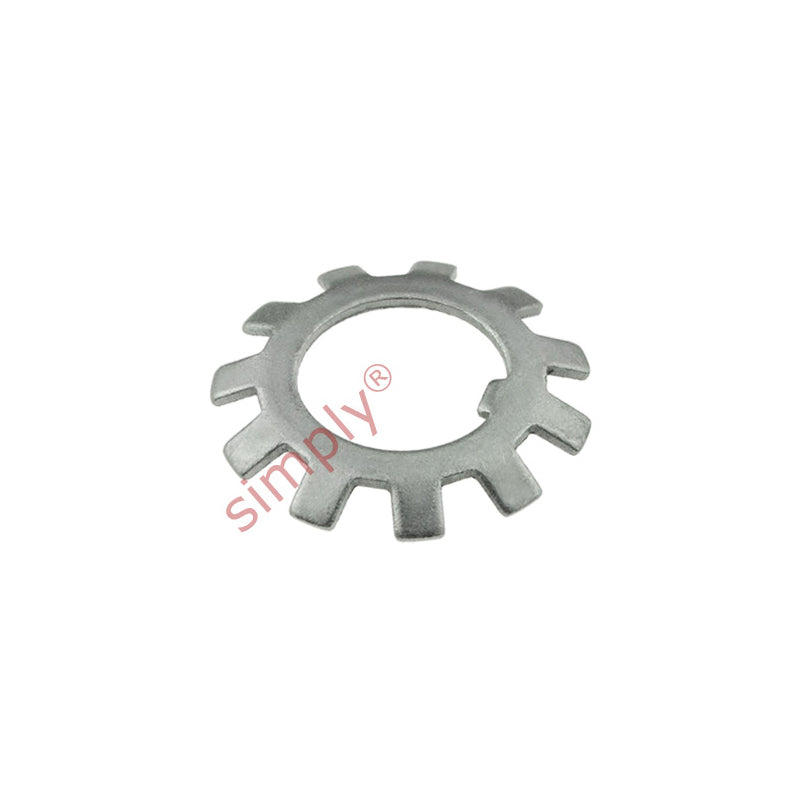

MB14 Locking Tab Washer 70x98x1.5mm
- Regular price
- $8.86 ex VAT
- Sale price
- $8.86
- Regular price
-
In stock
Quantity Price Breaks
10
$7.89
19
$7.44
29
$7.35
39
$7.27
49
$7.18
74
$7.09
99
$6.65
199
$6.56
249
$6.47
499
$6.38
999
$6.20
SKU:
MB14-MB
MB14 Locking Tab Washer 70x98x1.5mm
- Regular price
- $8.86 ex VAT
- Sale price
- $8.86
- Regular price
-
Description
|
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series Benefits: Efficient, secure, inexpensive, removable and re-useable |
Technical
| d | = | 70mm |
| d1 | = | 85mm |
| d2 | = | 98mm |
| B | = | 1.5mm |
| f | = | 8mm |
| M | = | 66.5mm |
| Weight | = | 32 g |
